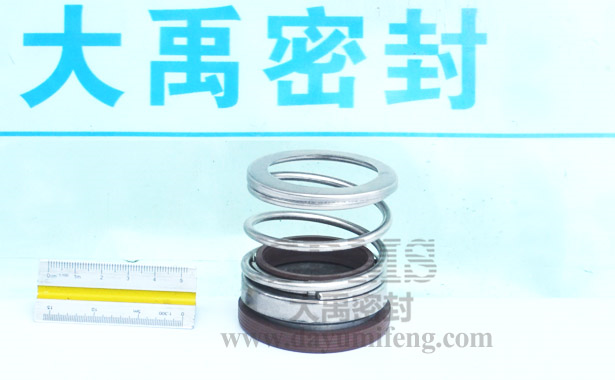

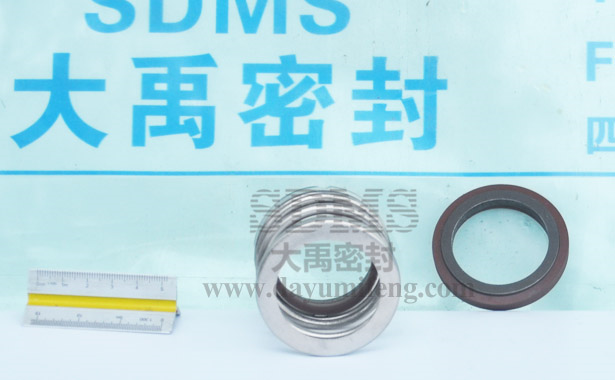

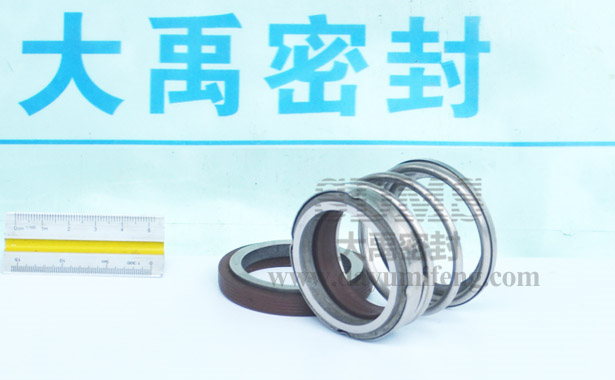

BIA-40 for raw water pump

Product Description:Universal single mechanical seal component type for raw water pump seal and submerged pump application.
Product Description







Sdms Seal Co., Ltd. is a complete supplier of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes shaft seals, single spring shaft seals, multiple spring component seals,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our products can replacement of John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan and customized OEM seals etc. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: BIA-40  Style: mechanical seals elastomer bellows


Material
Sealing Ring : TC/ SiC
Other Metal Parts : 304/316L
Auxiliary Seal : FPM/FKM

Design Features
Universal single mechanical seal component type for raw water pump seal and submerged pump application. The simple structure model, static seal relying on rubber gasket and rubber ring, gasket and rubber ring at the same time also drive and anti rotary, large springs provide compensation force for sealing ring, thus realize the product structure is simplified, reduces the product cost.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Replacement Burgmann seal

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas

Replacement models, reemplazar modelos
Mechanical seal Burgmann type EA560, Sello mecanico Burgmann tipo EA560,


view:1390    lable:replacement burgmann,EA560,EA560 sello,reemplazar burgmann,raw water pump seal,submerged pump seal, mechanical seal supplier,sello mecanico proveedor,bia-40,  Food and beverage industry  Oil and gas industry  Water conservancy  Acid pump  Chemical pumps  Oil pump  Raw water pump seal  Submerged pump  General type pumps  General type factory  Burgmann
Application
Design features
Single component seal
Non pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without flushing water
Speed:2600 r/min
Shaft via:40 mm
