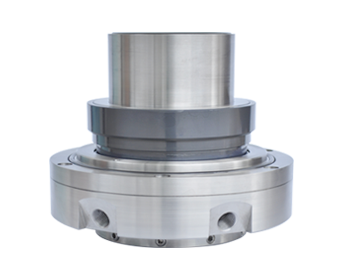

SDMS-GJ-70 pump seal distributes

Product Description:Single cartridge mechanical seals(without flushing water) for pulp pump, chemical pump, slurry pump application. .It is new mechanical seals model from SDMSSEAL pump seal distributes.
Product Description









Sdms Seal Co., Ltd. is one of the largest mech seals exporter, manufacturer and repaire in China.
We produce highest quality the widest range of mechanical seals standard, balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush for general industry,  oil & gas,pharmaceutical,power, pulp & paper ,water resources etc.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann, Flowserve,Sharpe, Ekato, Grundfos, Lightnin,Warman,Flygt,Aflas,AES, Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SDMS-GJ-70  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals(without flushing water) for pulp pump, chemical pump, slurry pump application.Shaft sleeve has a trapezoidal thread slot..It is new mechanical seals model from SDMSSEAL pump seal distributes. While mechanical seal rotating, the trapezoidal thread slot along causing surrounding mediums around the mechanical seal circulating that prevents parties depositing around seal area which can cause continuing corrosion at mechanical seal. Sediment of particles can also impact to the sealing ring`s supplemental seal structure.

Recommended Applications Pumps and Rotating Equipment
General pumps factories
General pumps seal types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es una fabrica sello mecanico completo de dise?o, fabricación y reparacion de nivel internacional en China.Fabricamos sellos multimuelle,sellos de ballesta,sellos de fuelle,cartuchos dobles, cartuchos simples para bombas, sistemas de sellos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Flowserve,Sharpe, Grundfos,ITT,KSB, Sulzer,Warman, Flygt, Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1097    lable:SDMS-GJ-70,circulation pump mechanical seal,chemical standard pumps mechanical seal,pump seal distributes,mech seals exporter china, mech seals manufacturer china,fabrica sello mecanico china,  Pulp and paper industry  Coal chemical industry  Fertilizer  Salt making  Circulating pump  Slurry pump  Pulp pump  Chemical standard pumps  Chemical pumps  General type pumps
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without flushing water
Speed:1600 r/min
Shaft via:70 mm
