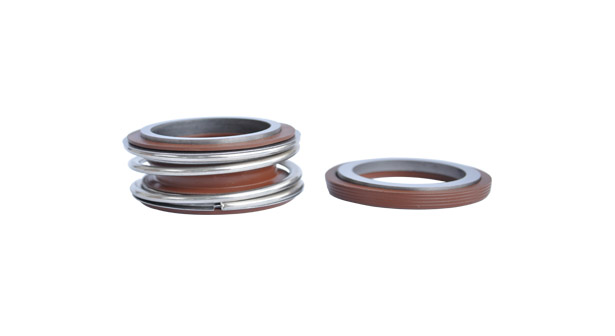

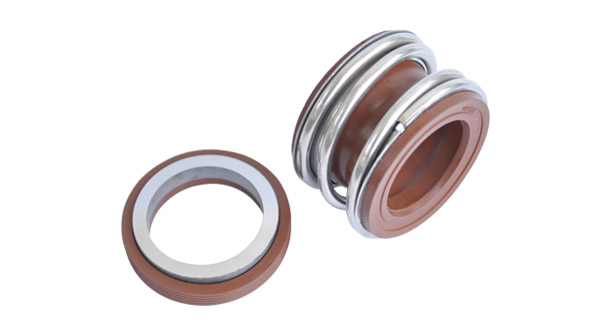

Sellos mecánicos MG1

Product Description:Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecánicos standard, sellos mecánicos de cartucho, sellos mecánicos de resorte unico, sellos mecánicos de resortes multiples, sellos mecánicos de fuelle para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.
Product No.:MG1 seal
PID No.:141306
Product Series:Elastomer Bellow Seals
Application Industry:Fine chemicalSalt makingCaustic soda industry
Pump Type:Acid pumpAlkali pump
Product Description





Sdms Seal Co., Ltd. is a complete supplier of design, manufacture and repair of industrial sealing systems and control fluid. We produce conventional mechanical seal, standard mechanical seals, pusher mechanical seal,Non-pusher mechanical seal,unbalanced mechanical seal,balanced mechanical seal,single spring mechanical seals,multiple spring mechanical seals,metal bellows seal for pumps, compressors, mixers, reactors, agitator and other revolving equipment. Our products can replacement of John Crane, Eagle Burgmann, Chesterton Flowserve, Sharpe, Andritz, Ekato, Grundfos, ITT, KSB, Lightnin, Sulzer, Warman, Flygt, Katrex, Aflas,AES and etc. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us sdmsseal@foxmail.com

Model No.:MG1  Style:  mechanical seals elastomer bellows

Material
Sealing ring : TC/SiC/Graphite
Other metal parts : SS304/ SS316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design Features
Component single mechanical seal. According to the pump mechanical seal cavity structure,it can only do a single seal products, but also a series combination of two sets of installation, external flushing water do double mechanical seal apply. Corrosion-resistant rubber bellows rubber mat L provides a secondary seal, able to adapt to a variety of corrosive media strength. Stainless steel spring and bellows rubber composition Compensation ring to compensate for the force. Seal ring material according to the actual working condition, it offers a variety of optional materials.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Helical screw pumps,stock pumps,circulationg pumps,submersible pumps,water pumps

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecánicos standard, sellos mecánicos de cartucho, sellos mecánicos de resorte unico, sellos mecánicos de resortes multiples, sellos mecánicos de fuelle para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane, Eagle Burgmann, Chesterton, Flowserve,Sharpe, Andritz, Ekato, Grundfos, ITT, KSB, Lightnin, Sulzer, Warman, Flygt,Katrex,Aflas y AES entre otros. Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas

Analogs Models, análogo Modelos
Mechanical seal Burgmann type MG1, Sello mecanico Burgmann tipo MG1,
Mechanical seal Burgmann type MG12, Sello mecanico Burgmann tipo MG12,
Mechanical seal Burgmann type MG13, Sello mecanico Burgmann tipo MG13,
Mechanical seal Burgmann type MG1S20, Sello mecanico Burgmann tipo MG1S20,
Mechanical seal Aesseal type B02 , Sello mecanico Aesseal tipo B02,
Mechanical seal Aesseal type B012 , Sello mecanico Aesseal tipo B012,
Mechanical seal Aesseal type B013 , Sello mecanico Aesseal tipo B013,
Mechanical seal Flowserve type 190 , Sello mecanico Flowserve tipo 190,
Mechanical seal Flowserve type 192 , Sello mecanico Flowserve tipo 192,
Mechanical seal Flowserve type 193, Sello mecanico Flowserve tipo 193,
Mechanical seal Hecker type HN 410SU, Sello mecanico Hecker tipo HN 410SU,
Mechanical seal Hecker type HN 410KU , Sello mecanico Hecker tipo HN 410KU,
Mechanical seal Hecker type HN 410NU , Sello mecanico Hecker tipo HN 410NU,
Mechanical seal Roten type L3 , Sello mecanico Roten tipo L3,
Mechanical seal Roten type L3k , Sello mecanico Roten tipo L3k,
Mechanical seal Roten type L3N, Sello mecanico Roten tipo L3N,
Mechanical seal Sterling type SMG1 , Sello mecanico Sterling tipo SMG1,
Mechanical seal Sterling type SMG12 , Sello mecanico Sterling tipo SMG12,
Mechanical seal Sterling type SMG13, Sello mecanico Sterling tipo SMG13,
Mechanical seal Vulcan type 19, Sello mecanico Vulcan tipo 19,
Mechanical seal Vulcan type 192, Sello mecanico Vulcan tipo 192,
Mechanical seal Vulcan type 193, Sello mecanico Vulcan tipo 193,



view:684    lable:mg12 seal,MG9,mg901 seal,mg1s20,MG1 sello,mg1 cierre,sellos mecánicos proveedor,burgmann sello,mechanical seals,mg13 seal,mg13 sello, vulcan seal 193 ,sterling seal smg13,hecker seal 410su,flowserve seal192, aesseal seal b012,  Caustic soda industry  Fine chemical  Salt making  Acid pump  Alkali pump  General type pumps  Andritz  Burgmann
Application
Design features
Single component seal
Non-pusher
Rubber bellows
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Shaft via:16-120 mm
Technical data
