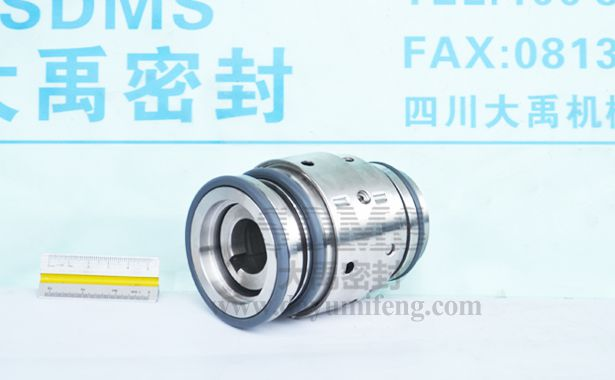

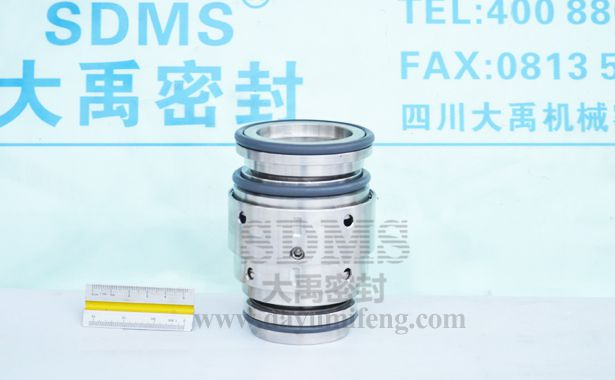

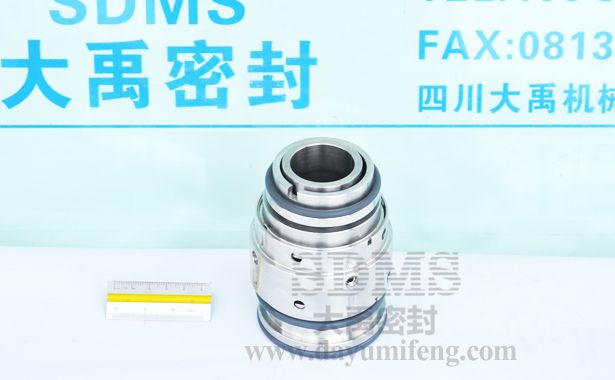

FHT65-50-160 for infusion pumps seals

Product Description:Double component mechanical seals for infusion pumps,high pressure pump series of Jiangsu ShuangHeng Valve Manufacturing Co.,Ltd application.
Product Description









Sdms Seal Co., Ltd. is a mechanical seals factory of design, engineering and repair of industrial sealing systems and control fluid in China.We produce mechanical shaft seals, single spring seals, multi spring seals,wave spring seals,metal bellows,welded metal bellows seals, rubber bellow seals for jet pumps, pool and spa pumps, submersible pumps ,compressors and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Flowserve,Sharpe,Andritz, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt, Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: FHT65-50-160   Style: mechanical seals component

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Double component mechanical seals for infusion pumps,high pressure pump series of Jiangsu ShuangHeng Valve Manufacturing Co.,Ltd application. Double faces seals structure, primary sealing is balanced,used for sealing of pump cavity medium;Secondary sealing is unbalanced,used for seal flush water ,it prevents flush water leaking into the pump body external environment.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Jiangsu ShuangHeng Valve Manufacturing Co.,Ltd.
General pumps seals types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es el proveedor líder de dise?o, fabricación y reparacion de sello cartucho y sello componente para sistemas de sellado industrial y control de fluidos en China.Fabricamos sellos fuelle elastomerico, sello cartucho de resortes multiples, sello mecanico de fuelle, sellos de ballesta, sellos de fuelles de metal para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Ekato, Grundfos,ITT,KSB, Sulzer,Warman, Flygt,Katrex, AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1259    lable:oil transfer pump mechanical seals, infusion pumps mechanical seals, high pressure pump mechanical seals, pumping material pump mechanical seals, chemical process pump mechanical seal, mechanical seals factory china,proveedor sello cartucho china,  Chemical industry  Chemical fiber  Fine chemical  Oil and gas industry  Chemical process pump  Chemical pumps  Chemical standard pumps  High pressure pump  Infusion pump  Oil transfer pump  Pumping material pump  Jiangsu ShuangHeng Valve Manufacturing Co.,Ltd.
Application
Design features
Double component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±3
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:2100 r/min
Shaft via:35 mm
