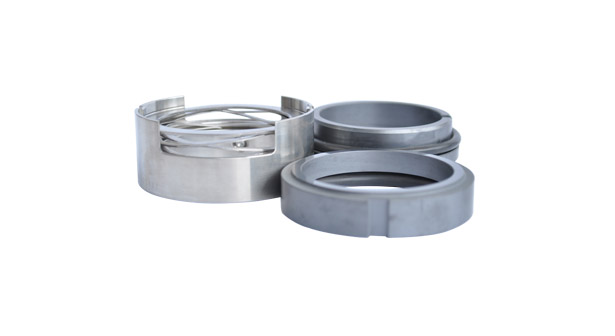

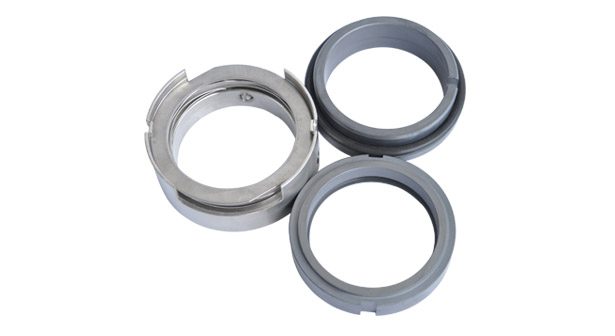

Replacement seals eagle burgmann M7N series

Product Description:Replacement seals eagle Burgmann common type of simple mechanical seal, Single seal component structure can be individually set for installation in a separate chamber of the pump mechanical seal can also be composed of two sets of double mechanical seal tandem use.
Product Description





Sdms Seal Co., Ltd. is a complete supplier of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes shaft seals, single spring shaft seals, multiple spring component seals ,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for pumps, compressors , mixers, reactors, agitator and other equipment revolving. Our products can replacement of John Crane, Eagle Burgmann, Chesterton,Roplan, Flowserve, Sharpe, Andritz, Ekato, Grundfos, ITT,KSB, Lightnin, Sulzer, Warman, Flygt, Katrex, Aflas, AES, Sterling, Vulcan and customized seals etc. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: M7N  Style:  mechanical wave seals component

Material
Sealing Ring : TC/ SiC/Graphite
Other Metal Parts : 304/316L
Auxiliary Seal : FPM/FKM/MVQ/NBR

Design Features
Replacement seals eagle Burgmann common type of simple mechanical seal, Single seal component structure can be individually set for installation in a separate chamber of the pump mechanical seal can also be composed of two sets of double mechanical seal tandem use. Our company can according to the actual needs of customers, do a combination of specific design and other pieces of metal structures into cartridge mechanical seal. The mechanical seal is a component structure, the installation process is easy to install because of operational difficulties affect the sealing effect, after the adoption of specific design, usually consists of a set cartridge mechanical seal, simplifying installation difficulty and reduce installation errors.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Burgmann

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sello mecanico onda, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane, Eagle Burgmann, Chesterton,Roplan, Flowserve, Sharpe, Andritz, Ekato, Grundfos, ITT, KSB, Lightnin, Sulzer, Warman, Flygt, Katrex, Aflas, AES, Sterling, Vulcan entre otros. Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas

More Models, Más Modelos
Mechanical seal Burgmann type H3B, Sello mecanico Burgmann tipo H3B,
Mechanical seal Burgmann type H7N, Sello mecanico Burgmann tipo H7N,
Mechanical seal Burgmann type H10/H8, Sello mecanico Burgmann tipo H10/H8,
Mechanical seal Burgmann type H12N, Sello mecanico Burgmann tipo H12N,
Mechanical seal Burgmann type H74-D, Sello mecanico Burgmann tipo H74-D,
Mechanical seal Burgmann type H75VN, Sello mecanico Burgmann tipo H75VN,
Mechanical seal Burgmann type HA211, Sello mecanico Burgmann tipo HA211,,
Mechanical seal Burgmann type HJ92N, Sello mecanico Burgmann tipo HJ92N,
Mechanical seal Burgmann type HRN, Sello mecanico Burgmann tipo HRN,
Mechanical seal Burgmann type LB500, Sello mecanico Burgmann tipo LB500,
Mechanical seal Burgmann type M2N, Sello mecanico Burgmann tipo M2N,
Mechanical seal Burgmann type M3N/N3, Sello mecanico Burgmann tipo M3N/N3,
Mechanical seal Burgmann type M7N, Sello mecanico Burgmann tipo M7N,
Mechanical seal Burgmann type M37, Sello mecanico Burgmann tipo M37,
Mechanical seal Burgmann type M37G, Sello mecanico Burgmann tipo M37G,
Mechanical seal Burgmann type M74-D, Sello mecanico Burgmann tipo M74-D,


view:14088    lable:m7n,m7n sello,m7n cierre, burgmann sello,burgmann cierre,burgmann m7n,mechanical seals,replacement m7n,shaft seals factory,api sello mecanico,api sello mecanico proveedor,  Pulp and paper industry  Coal chemical industry  Fertilizer  Chemical industry  Slurry pump  Pulp pump  Chemical standard pumps  Burgmann  General type factory
Application
Design features
Single component seal
Pusher
Rubber bellows
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Shaft via:20-120 mm
Technical data
