2DG-10AT oil pumps seals

Product Description:Component single mechanical seals 2DG-10AT for chemical pump, oil pump, acid pump application.
Product Description










Sdms Seal Co., Ltd. is a pump seal supplier of design, manufacture and repair service on all types of seals for process industry.We produce inch & metric sizes pump shaft seals, component mechanical seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals for pumps, compressors, mixers, reactors, agitator and other rotating equipment. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 2DG-10AT   Style: mechanical seals component

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features

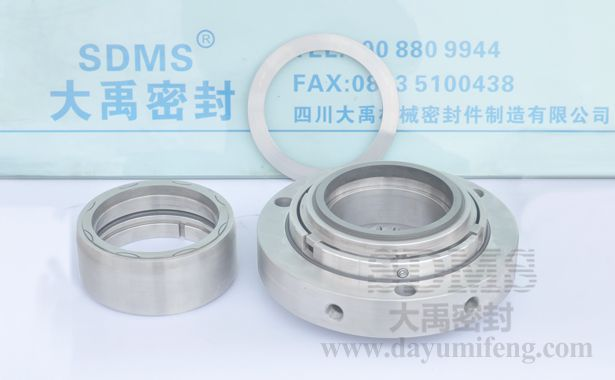

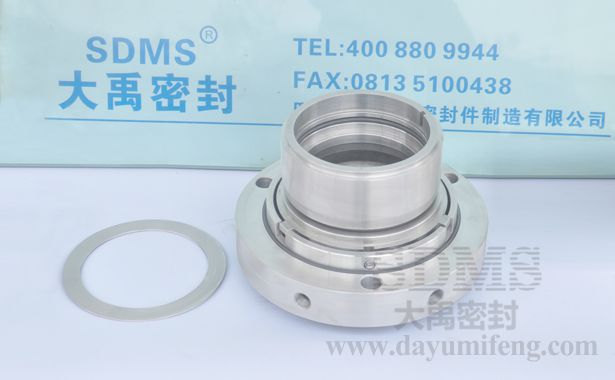

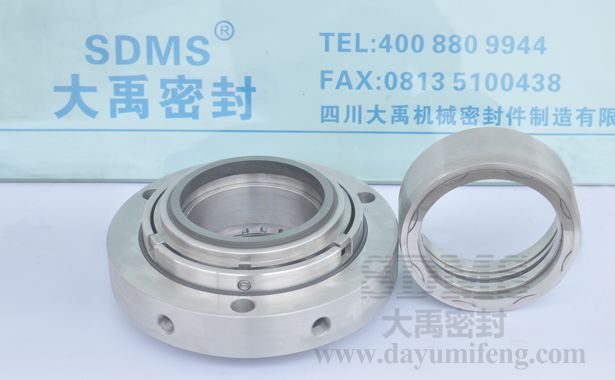

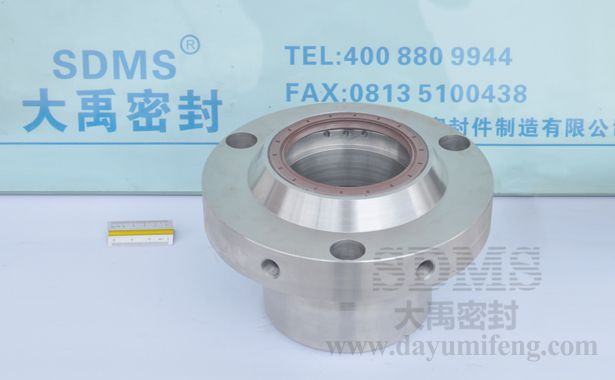

Component single mechanical seals 2DG-10AT for chemical pump, oil pump, acid pump application.The main structure is rotating ring and static ring .Static ring components including gland, springs, static ring, drive ring to prepare as whole set in our factory.It is easy to install.The face of sealing ring has the regular groove, groove depth is about 0.1 mm, the existence of the groove can make the sealing liquid or gas more smoothly in between the two sealing ring face, forming liquid film lubrication or gas film lubrication,it is better prevent damage of dry grinding and protect the two seal face .

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
General pumps factories
General pumps seal types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un suplidor líder de sello mecanico y cierre mecanico de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos repuestos, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:818    lable:2DG-10AT, oil pump mechanical seal,chemical standard pumps mechanical seal,mechanical seal supplier china ,mechanical seal manufacture china,suplidor sello mecanico china,  Oil and gas industry  Fine chemical  Chemical industry  Phosphoric acid pump  Acid pump  Hydrochloric acid pump  Chemical standard pumps  Oil pump  General type pumps
Application
Design features
Single component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1450 r/min
Shaft via:92 mm
Technical data
