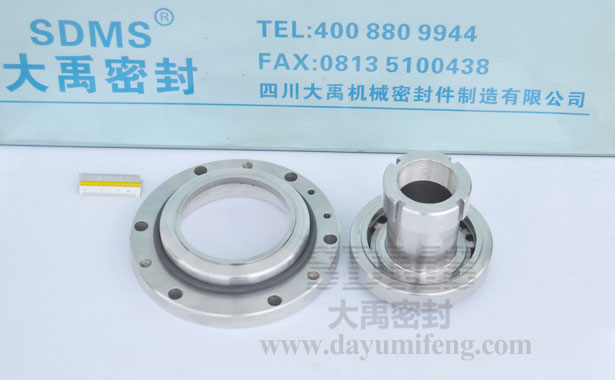

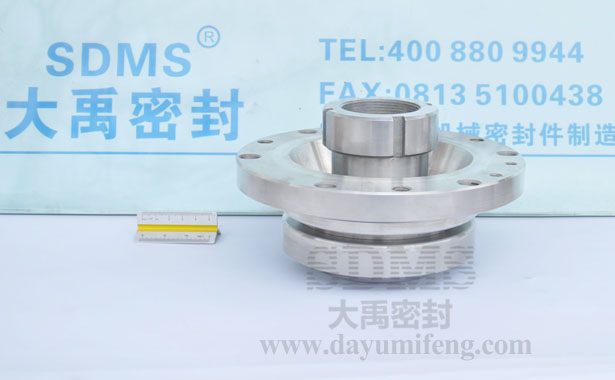

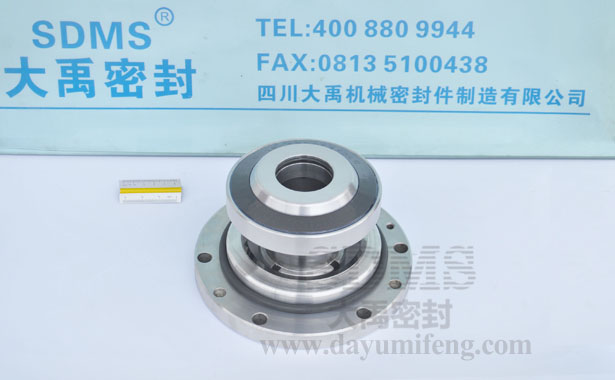

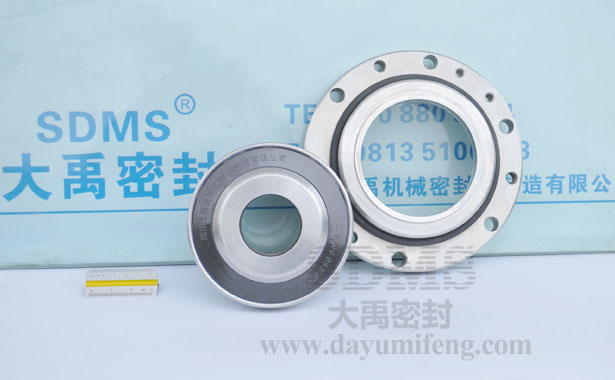

ZHPK-50 mechanical seal for circulating pump

Product Description:Single cartridge mechanical seals(without flushing water) for Xiangyang Wu Er Wu Pump LC series pumps application.
Product Description









Sdms Seal Co., Ltd. is a shaft seals suppliers of design, manufacture and repair of industrial sealing systems and control fluid.We produce Teflon bellow mechanical seal, single spring seals, multiple spring component seals,automotive pump seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows mechanical seals, rubber bellow seals, pusher seals for water pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton, Flowserve,SEkato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others OEM mechanical seals. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.:ZF155 seires   Style: mechanical seals component

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals(without flushing water) for Xiangyang Wu Er Wu Pump LC series pumps application. The diaphragm spring offer compensation force structure,the simplified mechanical seal, also the installation process simplifies,there is no installation error's influence on the seal.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
LC50/350N1T,LC65/310T,LC100/300T,LC100/320T

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor líder de dise?o, fabricación y reparacion de sistemas de cierres en bombas industriales y control de fluidos.Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos mecanicos para bombas de agua,bombas de centrifugas, bombas de turbinas rotativas compresores, mezcladores, reactores,agitadores,monilos y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Flowserve,Sharpe, ITT,KSB, Andritz, Ekato, Grundfos, Lightnin,Sulzer,Warman, Flygt, AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1270    lable:wu er wu pump seal,525 pumps seal,mechanical seal OEM,LC50/350N1T,LC100/320T,ZHPK-50, ,circulating pump seals,proveedores de cierres,sello mecanico bomba centrifuga,sellos de bombas centrifugas,  Power plant  Metallurgy  Coal chemical industry  Alumina industry  Circulating pump  Slurry pump  Overflow pump  Dredge pump  Chemical standard pumps  Chemical pumps  Mud pumps  Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
Application
Design features
Single component seal
Non pusher
Diaphragm spring
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:1700 r/min
Shaft via:50 mm
Technical data
