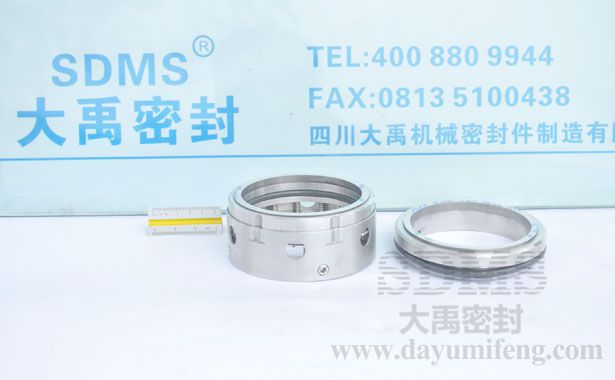

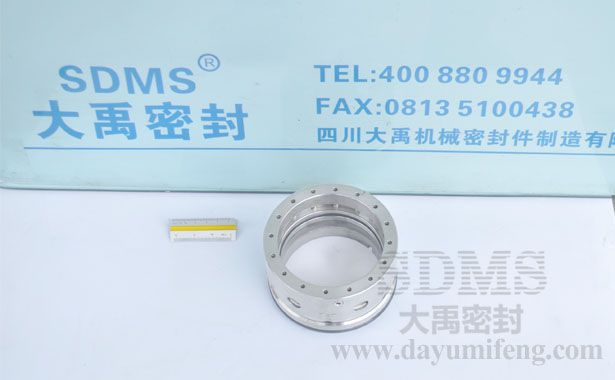

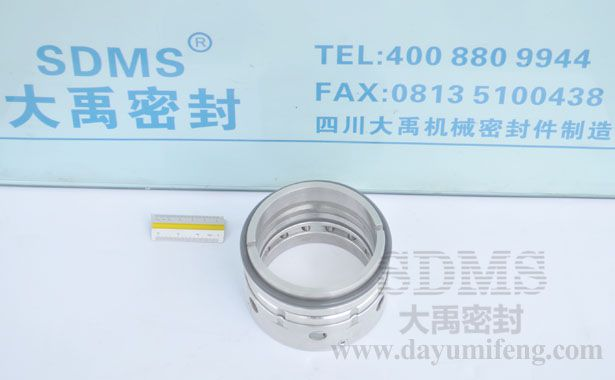

ZU24N-130 mechanical seal for drainage pumps

Product Description:Universal mechanical seal, simple structure, easy processing, use effective, low prices.
Product Description






Sdms Seal Co., Ltd. is a complete mechanical seal wholesaler of design, manufacture and repair of mechanical sealing systems and control fluid in China.We produce small shaft seals, single seals,double seals,multi spring seals,wave spring seals,metal bellows,welded metal bellows seals, rubber bellow seals, for pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB, Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZU24N-130  Style: mechanical seals component

Material
Sealing ring : hard metal/SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Universal mechanical seal, simple structure, easy processing, use effective, low prices. ZU24N series with unbalanced structure, multiple springs, shaft diameter range from 18-150mm, suitable for the pumps with smaller installation space. In order to meet the variety conditions, all parts are multiple choice with a flexible material.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
General pumps factories
General pumps seal types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de dise?o, fabricación y reparacion de sello tipo components para sistemas de sellado industrial y control de fluidos en China.Fabricamos sellos de componentes, sellos mecanicos de resorte ondulado, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, sellos mecanicos de externo balanceado, sellos de fuelles de metal para bombas centrifugas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:897    lable:ZU24N-130,drainage pumps mechanical seal,water pumps mechanical seal, sewage water pumps mechanical seal,mechanical seal wholesaler china,sello tipo components empresa china,  Oil and gas industry  Fine chemical  Water and waste water technology  Water conservancy  Acid pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Drainage pumps  General type factory
Application
Design features
Single component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:1100 r/min
Shaft via:130 mm
Technical data
