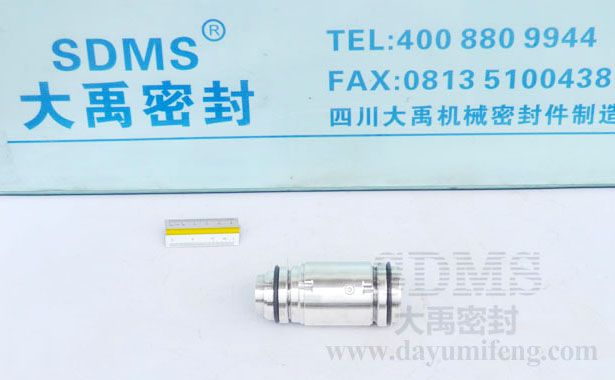

IH35D100QQ mechanical seal for trash pump

Product Description:Double component mechanical seals for Xiangyang Wu Er Wu Pump IHE series pump application.
Product Description







Sdms Seal Co., Ltd. is one of the largest cartridge seals suppliers, designer,manufacturer and repaire in China.
We are offering a broad range of cartridge mechanical seal,double cartridge seal, unbalanced cartridge seal, single cartridge seal equipped with flush, double cartridge mechanical seals for pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Depac,AES,Sterling,Vulcan,Pac-Seal and OEM products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more further Information, please contact us.

Model No.: IH35D100QQ  Style: mechanical seals cartridge seals


Material
Sealing ring : hard metal/SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Double component mechanical seals for Xiangyang Wu Er Wu Pump IHE series pump application. Double face structure, it need to an external high voltage (more than moving a sealing medium pressure) rinse water, wash water sealing medium and media together for the end-rings provide lubrication and seal flushing effect, atmospheric side seal ring alone against flushing water lubrication and cooling. Two sealing rings share a small spring, a small set of springs from the spring seat through-holes and fixed position, the spring moves back and forth along the axial direction of the process in the through hole, the elastic force will not be affected, to provide a stable two ring seal long-term compensation force. The advantage of this structure is the normal functioning of the mechanical seal in the installation error of ± 5mm.

Recommended Applications Pumps and Rotating Equipment
Xiangyang Wuerwu Pump Industry Co.,Ltd
IHE series pumps,IHE50-32-250,IHE65-40-250,IHE80-50-315,IHE100-65-200

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un fabricante completo de dise?o, fabricación y reparacion de cierre mecanico.Fabricamos cierre mecanico tipo cartucho, cierre mecanico tipo fuelle, cierre mecanico tipo fuelle metálico, cierre mecanico tipo ballesta para bombeos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato,Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Depac,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:897    lable:wu er wu pump seal,525 pumps seal,mechanical seal OEM,IHE pumps seals ,IHE50-32-250,IHE80-50-315,cierres mecanicos fabricante,api cierre mecanico,cartridge mechanical seal,mechanical seals for pumps,cartridge seals suppliers,  Power plant  Mining  Food and beverage industry  Coal chemical industry  Chemical industry  Slurry pump  Chemical pumps  Trash pump  Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
Application
Design features
Double component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:2500 r/min
Shaft via:25 mm
Technical data
