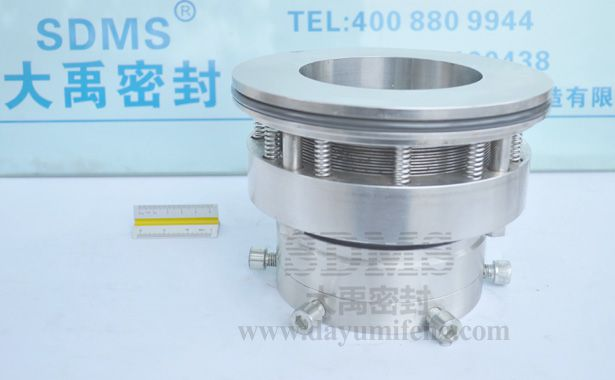

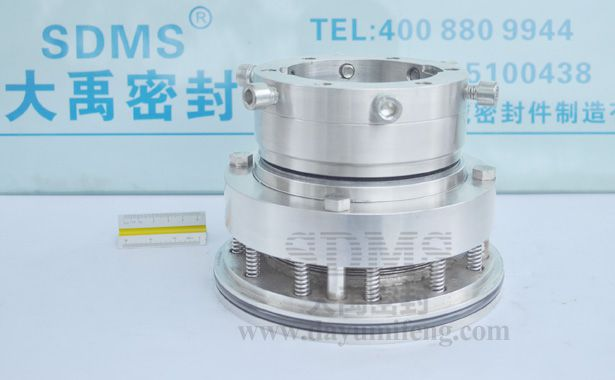

JB-225/95 mechanical seal for kettle

Product Description:Single component mechanical seals for high pressure hydrogenation reaction kettle application.
Product Description









Sdms Seal Co., Ltd. is a a mixer, agitator and reactor seals manufacturer of design,engineering and repair of  industrial mixing and blending.We produce large size reaction kettle seal, single reaction kettle seal, cartridge double reaction kettle seal, double reaction kettle seal for single rotor mixers,double rotor mixers,food grade mixers,cement mixers,fertilizer mixers. Our products can replacement of John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer and customized OEM mixer and agitator seals etc. We also do repair of mixer and agitator seal of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: JB-22595  Style: mechanical cartridge reaction kettle seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features

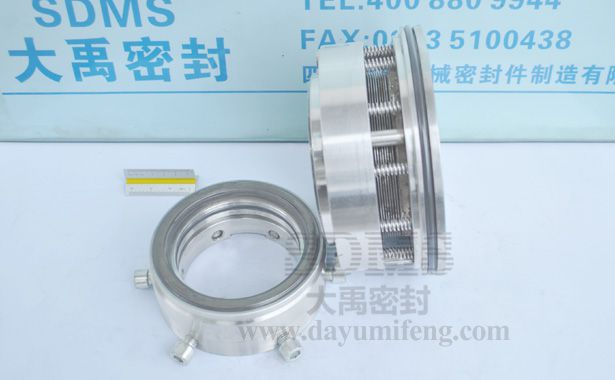

Single component mechanical seals for high pressure hydrogenation reaction kettle application. Flexible compensation structure is integrally connected with the stationary ring ,it needs to first install stationary ring assembly to the reactor chamber. Generally it has a higher temperature and pressure when the high pressure hydrogenation reaction kettle work.In order to play better sealing effect, compensate for static ring structure with a metal bellows of small uniform spring to achieve a stable seal.

Recommended Applications Pumps and Rotating Equipment

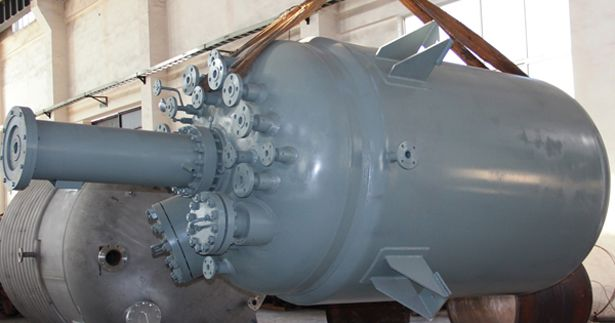

High pressure hydrogenation reaction kettle

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es unos fabricantes, distribuidores y proveedores de sello mecánico reactores completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos tipo cartucho para agitadores,
cartuchos dobles para mezcladores, sellos mecanicos para reactores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:640    lable:JB-225/95, kettle mechanical seal,high pressure mechanical seals, reaction kettle seals,cartuchos dobles seals, fabricantes sello agitador,distribuidores sello reactores, sello proveedores,fabricantes sello reactores,sellos reactores,agitadores mecanicos,  Oil and gas industry  Pharmaceutical  Food and beverage industry  High pressure hydrogenation reaction kettle  General type pumps
Application
Design features
Single component seal
Non pusher
Bellows style spring
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:1.2 Mpa
Rinse:Without water
Speed:1450 r/min
Shaft via:95 mm
Technical data
