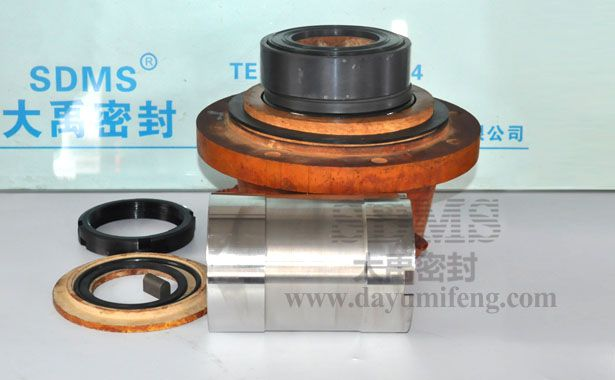

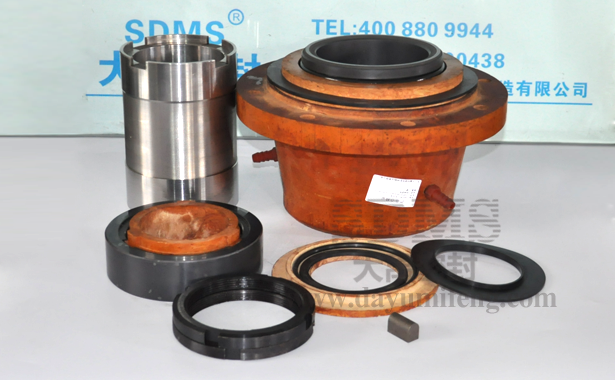

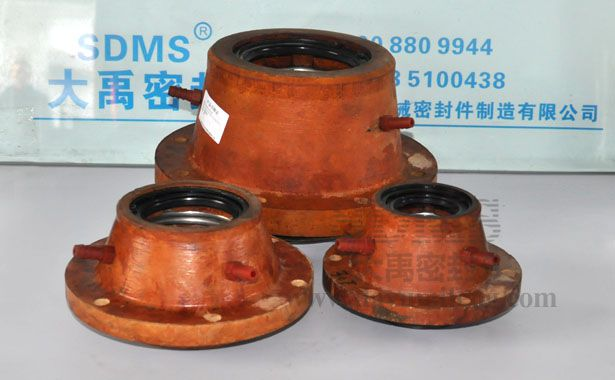

DYC3 sello mecanico plastico bomba

Product Description:Single component mechanical seals for Z S plastic pump FUH series engineering plastics low pump,pottery composite pump application.
Product Description









Sdms Seal Co., Ltd. is a pump seal supplier of design, manufacture and repair service on all types of seals for process industry in China.We produce pump shaft seals, component mechanical seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals for pumps, compressors, mixers, reactors, agitator and other rotating equipment. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.:  DYC3 series   Style: mechanical seals component

Material
Sealing ring : SiC
Other metal parts : FRP/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single component mechanical seals for Z S plastic pump FUH series engineering plastics low pump,pottery composite pump application. Mechanical seal is main base material made by FRP materials processing.FRP is a mixture of pressed wood chips with high hardness and strong corrosion resistance, thereby making DYC3 series of mechanical seal can adapt to the highly corrosive media.The metal structures were processed 304 or 316L stainless steel according to the actual working conditions in line with the strong corrosion resistance of FRP. Primary sealing surface is usually made by the whole process of silicon carbide, it can also be more customer specific requirements for targeted material selection and processing.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Z S plastic pump seal,FUH series pump seal
FDU engineering plastic series slurry pump
FTU series composite pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un suplidor líder de sello mecanico de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos en China.Fabricamos sellos repuestos, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe,Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:566    lable: plastic pump seal,FUH series pump seal, FDU engineering plastic seal,slurry pump seal, FTU composite pump seal, mechanical seal supplier china.mechanical seal manufacture china,sello mecanico plastico bomba,  Fine chemical  Pulp and paper industry  Fertilizer  Chemical industry  Phosphoric acid pump  Acid pump  Hydrochloric acid pump  Alkali pump  Pulp pump  Chemical standard pumps  Chemical pumps  Z S plastic pump
Application
Design features
Single component seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
