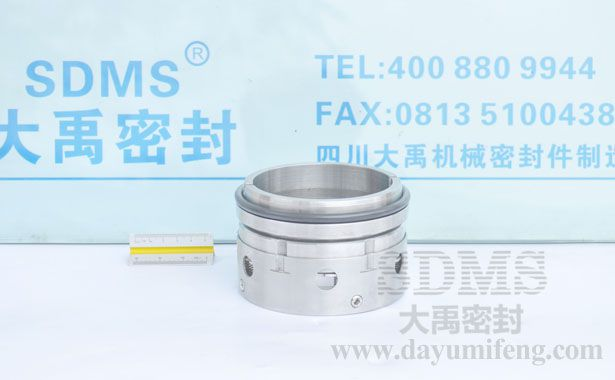

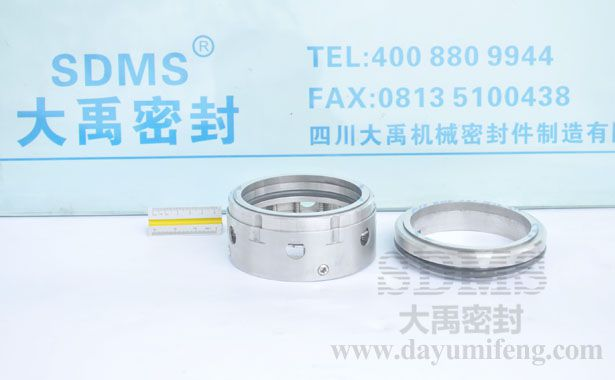

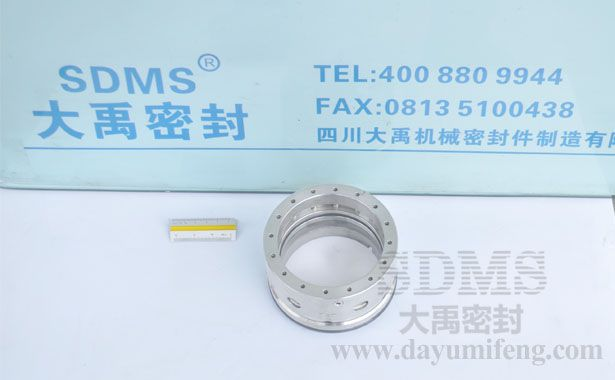

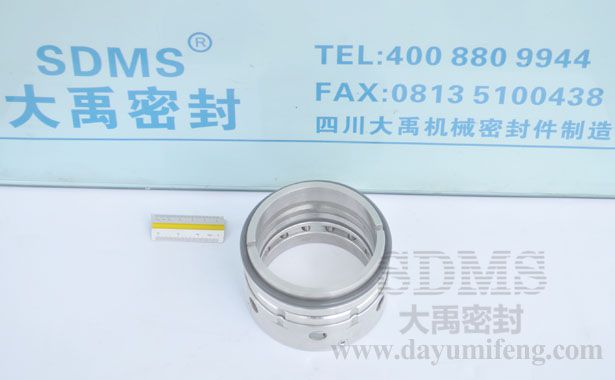

ZU24N-90 industrial water pumps seals

Product Description:Single component mechanical seal, simple structure, easy processing, use of effective, low prices. This is one of Z series mechanical seals use for industrial water pumps seals.
Product No.:ZU24N-90
PID No.:141327
Product Series:Component Seals
Application Industry:Oil and gas industryFine chemicalWater treatment
Pump Type:Acid pumpWater pumpsChemical pumps
Product Description









Sdms Seal Co., Ltd. is a complete shaft mecahincal seals manufacturer of design, engineering and repair of industrial sealing systems and control fluid in China.We produce metric sizes shaft seals, single spring shaft seals, multiple spring shaft seals ,conical spring shaft seals,single directional shaft seals, double directional shaft seals, balanced shaft seals, unbalanced shaft seals, bellow shaft seals,wave spring shaft seals for pumps, compressors, mixers, reactors, agitator and global rotating equipment market. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Lowara,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZU24N-90    Style: mechanical seals component

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single component mechanical seal, simple structure, easy processing, use of effective, low prices. This is one of Z series mechanical seals use for industrial water pumps seals. Z series seal has a variety structure, balanced and unbalanced, small springs and large coil springs, seal rings carbide materials, silicon carbide seal ring, graphite seal ring. Metal structure also provides various levels of corrosion resistance of 2Cr13 / 304 / 316L stainless steel. The shaft diameter of Z series mechanical seal is from 18mm to 120mm,it is big quantity in stock,it can be used alone or can also be assembled into a matching design cartridge mechanical seal, versatile, excellent results.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
General pumps factories
General pumps types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos en China.Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Lowara, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas



view:1099    lable:Multiple springs seals,sewage pumps seals,water pumps seals,acid pump seal,industrial water pumps seals,shaft mecahincal seals manufacturer china,empresa cierres mecánicos china,  Oil and gas industry  Fine chemical  Water and waste water technology  Acid pump  Water / sewage water pumps  Chemical pumps  General type factory
Application
Design features
Single component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:1450 r/min
Shaft via:90 mm
Technical data
