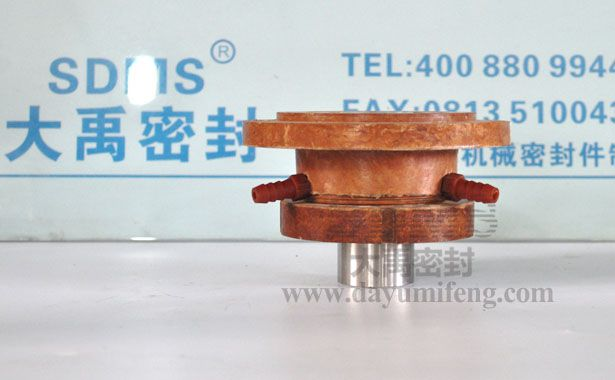

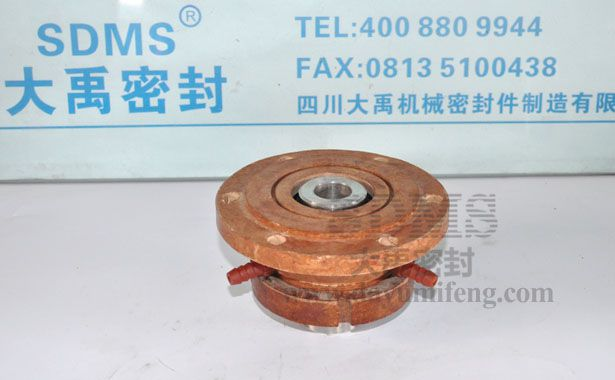

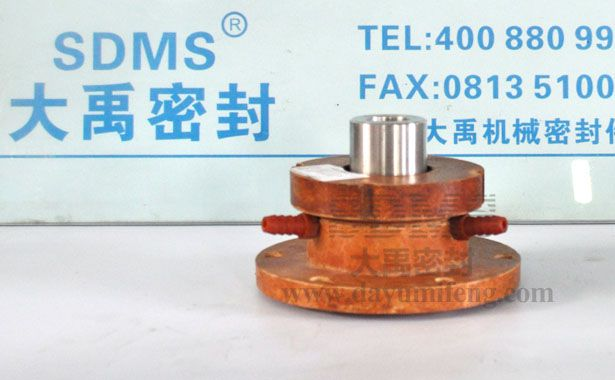

FUH、FDU series with Skeleton oil seal

Product Description:FUH ,FDU series mechanical seals is different from the traditional mechanical seal structure with sealing ring
Product Description






Sdms Seal Co., Ltd. is a complete mechanical seals manufacturer of rotary seal design,engineering and repair of industrial sealing systems and control fluid in China.We produce metric sizes shaft seals, single spring seals, multi spring seals,wave spring seals,metal bellows,welded metal bellows seals, rubber bellow seals for steel & paper industry,power generation,mining and rotating apllications.Our supply replacement seals for AES, John Crane,Eagle Burgmann,Flowserve,Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: FUH、FDU series    Style: mechanical seals component

Material
Sealing ring : Skeleton oil seal
Other metal parts : 304/316L
Auxiliary seal : FPM/FKM/MVQ

Design features
FUH ,FDU series mechanical seals is different from the traditional mechanical seal structure with sealing ring . This series of mechanical seals sealing performance depends mainly on oil seal 2-4 series.FRP structural has high strength corrosion resistance.The entire mechanical seal sleeve is the easiest part of the loss , common made of stainless steel materials processing, and the friction between the oil seal wear faster, life is short. We also used a corrosion resistant stainless steel processing, the latter after quenching and tempering process,it is been greatly improved in sleeve surface hardness, greatly reducing the wear rate of the sleeve, which also improves the mechanical seal life .

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Yixing Linggu Plastic Equipment Co.,Ltd
FUH、FDU pumps

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la fabrica líder de mejor dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos en China.Fabricamos sellos mecanicos componentes, sellos mecanicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, sellos de ballesta, sellos tipo fuelles metal para industrias en general,industrial quimicas,petroquimicas,pulpa y papel y metalurgicas.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer, AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1402    lable:Linggu Plastic Equipment,FUH seals,FDU seals,sea water pump seal,chemical pumps seals,linggu plastic pump seal,mechanical seals manufacturer china,corrosion resistance mechanical seal,fabrica sellos mecanicos china,  Metallurgy  Fertilizer  Chemical industry  Caustic soda industry  Phosphoric acid pump  Acid pump  Hydrochloric acid pump  Alkali pump  Sea water pump  Chemical pumps  Yixing Linggu Plastic Equipment Co.,Ltd
Application
Design features
Component rubber seal
Without spring
Independent of direction of rotation
Admissible axial movement ±3
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:2500 r/min
Technical data
