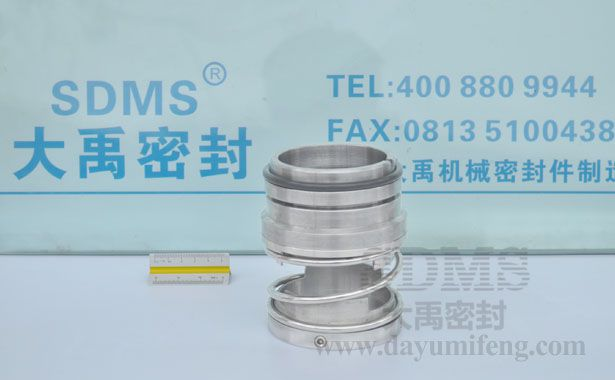

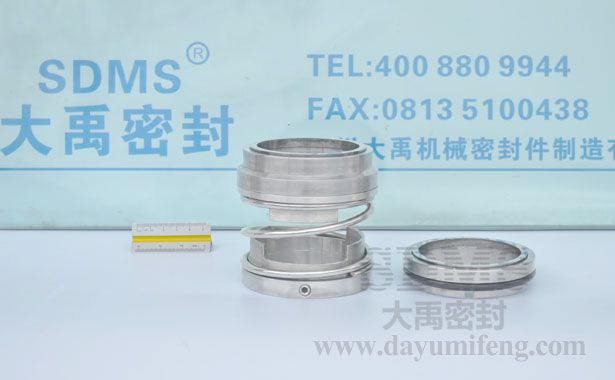

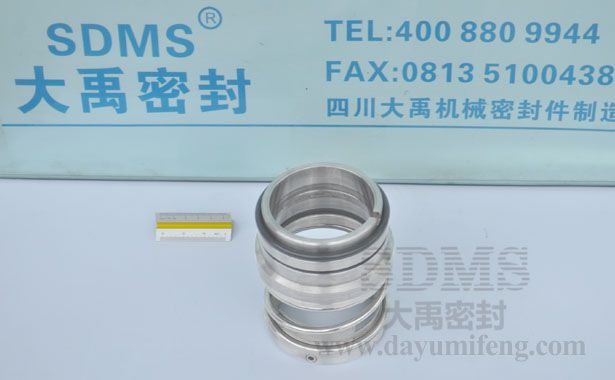

ZB44-70 household water pumps seals

Product Description:Comprehensive simple mechanical seal seal use for household water pumps seals, simple structure, easy processing, use of effective, low prices. it is one of type Z series in our company.
Product Description






Sdms Seal Co., Ltd. is a mechanical seals suppliers of design, manufacture and repair of industrial sealing systems and control fluid in China.We produce metric sizes mechanical seals, single spring mechanical seals, multiple spring component seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for water pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZB44-70   Style: mechanical seals component

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Comprehensive simple mechanical seal seal use for household water pumps seals, simple structure, easy processing, use of effective, low prices. it is one of type Z series in our company. Z series has a variety of mechanical seals, balanced and unbalanced, small springs and large springs, seal rings carbide materials, silicon carbide seal ring, graphite seal ring. Metal structure also provides various levels of corrosion resistance of 2Cr13 / 304 / 316L stainless steel.The shaft diameter of Z series mechanical seal from 18mm to 120mm, big quantity in stock.It can be used alone or can also be assembled into a matching design cartridge mechanical seal, versatile, excellent results.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
General pumps factories
General pumps types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la fabrica líder de dise?o, fabricación y reparacion de sistemas de cierres en bombas industriales y control de fluidos en China.Fabricamos sello mecanico de resorte unico, sello mecanico de resortes multiples, sello mecanico de fuelle, sello mecanico fuelle metálico, sellos mecanicos para bombas de agua,bombas de centrifugas, bombas de turbinas rotativas compresores, mezcladores, reactores,agitadores,monilos y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, ITT,KSB, Andritz, Ekato, Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:675    lable:household water pumps seals,ZB44-70,, desulphurization pump seal, mechanical seals suppliers china,welded metal bellows seals,sello mecanico fuelle metálico,  Fine chemical  Water and waste water technology  Chemical industry  Desulphurization pump  Acid pump  Water / sewage water pumps  Chemical pumps  General type factory
Application
Design features
Single component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:1700 r/min
Shaft via:70 mm
Technical data
