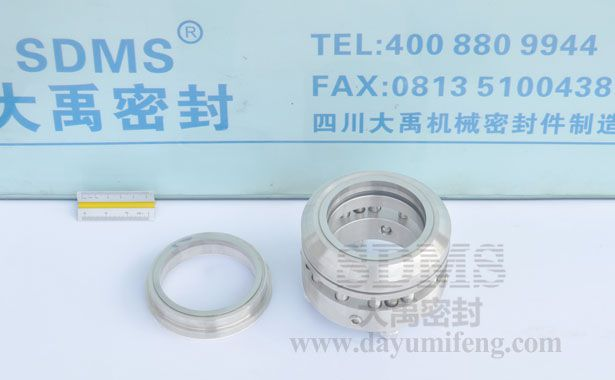

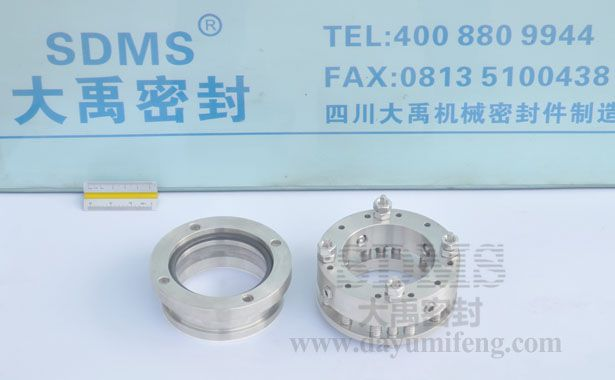

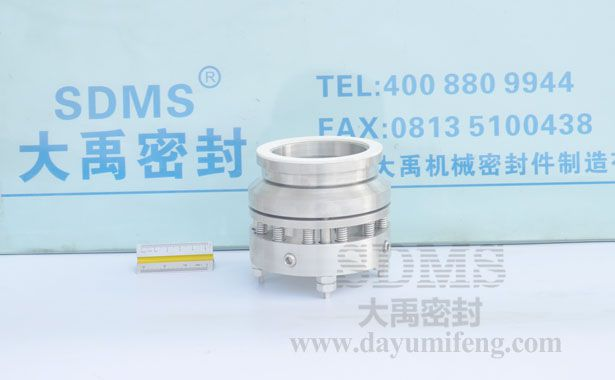

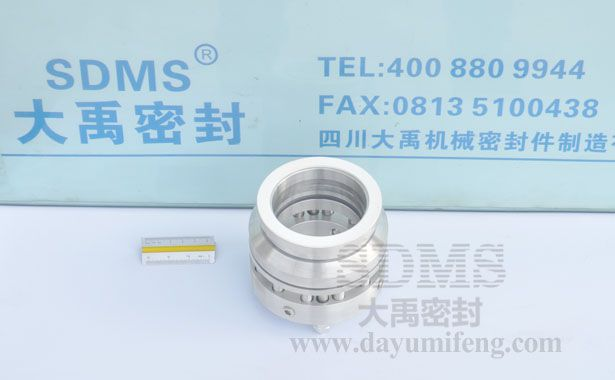

202-70 dewatering pumps mechanical seals

Product Description:National standard 202 type simple mechanical seals, common good. Single seal cartridge structure, usually a single dewatering pumps seals use.
Product Description









Sdms Seal Co., Ltd. is a complete mechanical seal manufacturers of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes mechanical seals, single mechanical seals, multiple component seals, spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 202-70    Style: mechanical seals component

Material
Sealing ring : hard metal/SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
National standard 202 type simple mechanical seals, common good. Single seal cartridge structure, usually a single dewatering pumps seals use. Our company can according to the actual needs of customers and do targeted selection process to guarantee in all circumstances the sealing medium can operate normally. It has a high pot life.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
General pumps factories
General pumps types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de dise?o, fabricación y reparacion de sistemas de sello mecanico para bombas.Fabricamos sello mecanico de resorte unico, sello mecanico de resortes multiples, sello mecanico para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas












view:1325    lable:dewatering pumps mechanical seals,202-70 pumps seals,mud pumps mechanical seals,dewatering pumps mechanical seals,mechanical seal manufacturers,empresa sello mecanico para bombas,  Oil and gas industry  Metallurgy  Water and waste water technology  Coal chemical industry  Slurry pump  Coal filter press pump  Water suction pump  Chemical pumps  Dredging pumps  Mud pumps  General type factory
Application
Design features
Single component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without flushing water
Speed:1600 r/min
Shaft via:70 mm
Technical data
