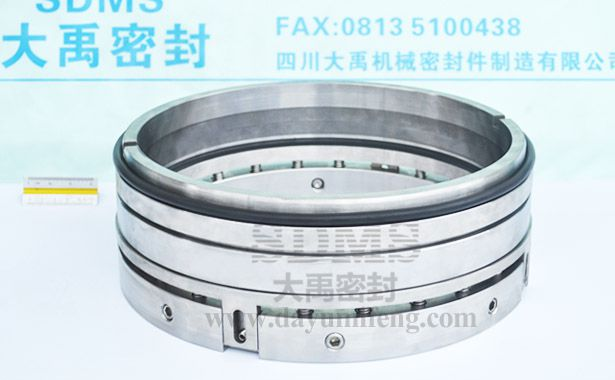

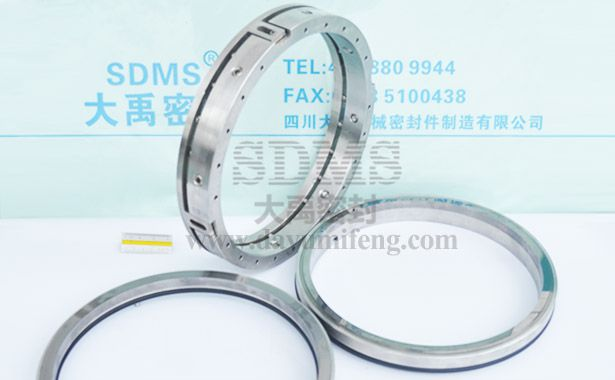

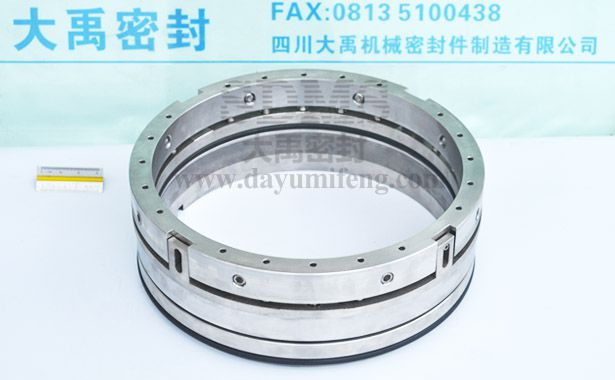

ZU54-260 mechanical seal for hydro turbine

Product Description:Component mechanical seal with large shaft diameter for generators of water conservancy application.
Product Description







Sdms Seal Co., Ltd. is a complete pump mechanical seals of design, manufacture and repair of industrial sealing systems and control fluid.We produce Hydro turbine mechanical seals, shaft seals, multiple spring component seals,welded metal bellows seals, pusher seals for pumps, compressors, mixers, reactors, agitator and other equipment revolving. If your single spring mechanical seals, multi-spring mechanical seals, metal bellows fails our technical staff will help you get what you need as quickly as possible.Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please feel free to contact us with any questions.

Model No.: ZU54-260    Style: mechanical seals component

Material
Sealing ring : hard metal
Other metal parts : 304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Component mechanical seal with large shaft diameter for generators of water conservancy application.For such a large circumference machinery, reducing installation replacement is necessary,therefore, high strength, corrosion resistance, good thermal conductivity of carbide materials to process the sealing ring. Metal structure is also corrosion-resistant steel, 304 stainless steel can be used or a corrosion-resistant 316L stainless steel for corrosive environments according to the actual environment.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
General pumps factories
Hydro turbine seals

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es la mayorista líder de sello mecanico calidad superior de sellado industrial y control de fluidos.Fabricamos sello mecanico de resorte unico, sello mecanico de resortes multiples, sello mecanico de fuelle para bombas industrials y equipos para fluidos.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1513    lable:Hydro turbine mechanical seals,ZU54-260,process pumps mechanical seal,turbine pumps mechanical seal,single component mechanical seal,mayoristade sello mecanico,  Power plant  Pharmaceutical  Water and waste water technology  Salt making  Circulating pump  Rotary and Turbine Pumps  Process pumps  General type factory
Application
Design features
Single component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:500 r/min
Shaft via:260 mm
