SE2-AP-60HM seawater pumps seals

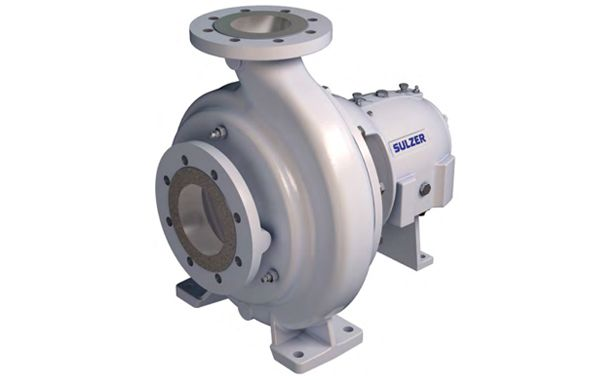

Product Description:Mechanical seals for replacement Sulzer APP pumps,cooling water pumps,seawater pumps application. Component structure must support the corresponding pump installed in order to work properly.
Product Description









Sdms Seal Co., Ltd. is a complete factory of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes shaft seals, single spring seals, multi spring seals,wave spring seals,metal bellows,welded metal bellows seals, rubber bellow seals, for feed water pumps, chemical pumps,compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

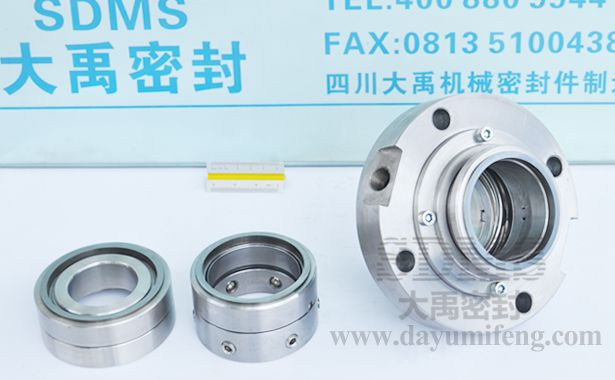

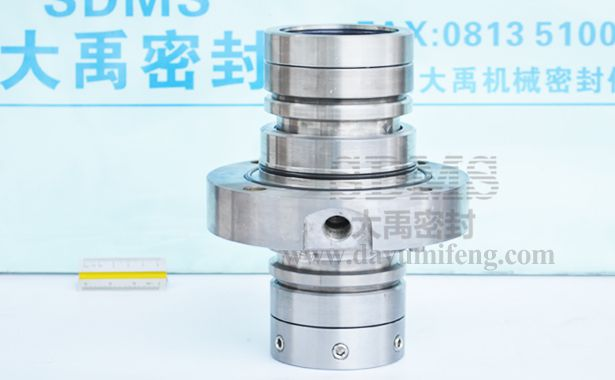

Model No.: SE2-AP-60HM   Style: mechanical seals component


Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Mechanical seals for replacement Sulzer APP pumps,cooling water pumps,seawater pumps application. Component structure must support the corresponding pump installed in order to work properly. Carbide seal ring, wear resistance, corrosion resistance, high hardness, to adapt to a variety of corrosive media and particulate matter. Corrosive metal structure according to different media, offers a variety of corrosion-resistant alloy choose to use, reasonably equipped with auxiliary sealing material, normal operation to guarantee the optimum configuration of mechanical seals.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Sulzer Management Ltd
Replace Sulzer APP pumps seal

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos de componentes, cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, sellos de ballesta, sellos mecanicos para sulzer bomba,app bomba y otro equipo rotativo.Las marcas de sellos que reponemos y reemplazamos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1330    lable:SE2-AP-60HM, replace app pumps seal,replacement sulzer pump seal,feeding pump seal,seawater pumps seals,reemplazar sulzer bomba sello,reemplazar app bomba sello,empresa cierres mecánicos,mechanical seal factory, sello mecanico empresa,  Food and beverage industry  Pulp and paper industry  Water and waste water technology  Chemical industry  Cooling water pump  Acid pump  Feeding pump  Sea water pump  Pulp pump  Water / sewage water pumps  Sulzer
Application
Design features
Double component seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Shaft via:60 mm
Technical data
