MECP-LK-75D1 for Wuerwu pump seal

Product Description:Xiangyang Wu Er Wu Pump MECP evaporation circulating pump for supporting component mechanical seal.
Product No.:MECP-LK-75D1
PID No.:141518
Product Series:Component Seals
Application Industry:MetallurgyChemical industry
Pump Type:Slurry pump,Mud pumps,Sludge pumpPulp pump
Product Description








Sdms Seal Co., Ltd. is a complete shaft seals exporter of design, manufacture and repair of industrial shaft seals and control fluid.We produce inch & metric sizes shaft seals, single spring shaft seals, multiple spring component seals,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for pumps, powder shaft seals,mixers, reactors, agitator, slurry shaft seals,  oil shaft seals and other rotating shaft seals. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Andritz, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.


Model No.: MECP-LK-75D1    Style: mechanical seals component


Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Xiangyang Wu Er Wu Pump MECP evaporation circulating pump for supporting component mechanical seal. It needs to be installed on a dedicated pump mechanical seal chamber to normal use, or via our technical staff to confirm the absence of other pump mechanical seal chamber size for this installation of mechanical seals can also be used normally. Non double end configuration, the normal installation, the pump mechanical seal chamber form a closed loop flush space. External flushing water can be taken away the sealing surface normal leakage medium and particulate matter, prevent long-term corrosion and deposition of particles impregnated sealing medium impact on sealing performance. Rinse water pressure should be close to or slightly greater than the seal chamber pressure, but also to prevent the sealing medium to flush water system leaks.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment

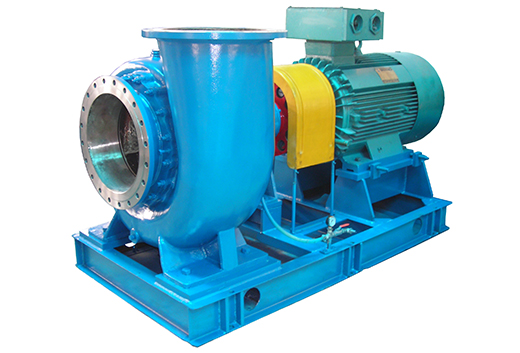

Xiangyang Wu Er Wu Pump Industry Co.,Ltd
MECP series pumps

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  el fabricante líder de dise?o, fabricación y reparacion de sello bomba y cierre bomba.Fabricamos sello mecanico doble, sello mecanico balanceado,sellos mecanicos tradicionales, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer, Ruhrpumpen  ,Flygt,Katrex,Aflas,AES, Gore, Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:577    lable:MECP-LK-75D1,MECP pumps seal,wuerwu Pump seal,pulp pump seal,shaft seals exporter,fabricante sello bomba china,fabricante cierre bomba china,  Metallurgy  Chemical industry  Slurry pump  Pulp pump  Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
Application
Design features
Double component seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±4
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1450 r/min
Shaft via:75 mm
Technical data
