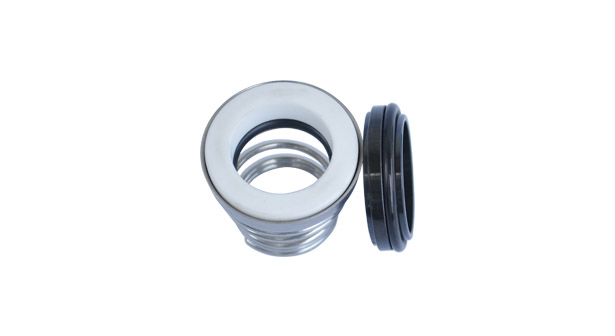

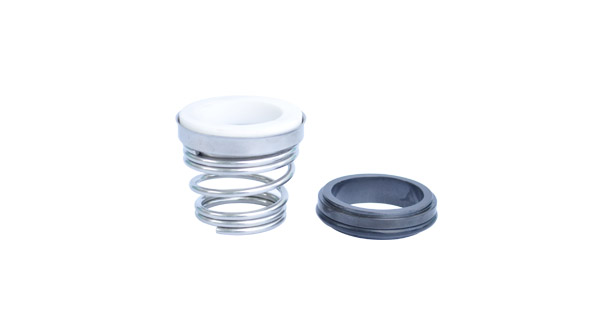

ZF155 for raw water pump seal

Product Description:Single seal compenent mechanical seal. Fewer parts, simple structure, easy to install replacement is also a small amount of work.
Product No.:ZF155 seires
PID No.:160003
Product Series:Component Seals
Application Industry:Water treatment
Pump Type:Circulating pumpWater suction pumpWater pumpsRaw water pump seal
Product Description




Sdms Seal Co., Ltd. is a shaft seals suppliers of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes shaft seals, single spring shaft seals, multiple spring component seals,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for water pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.


Model No.:ZF155 seires   Style: mechanical seals component


Material
Sealing ring : Ceramic/SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single seal compenent mechanical seal for raw water pump seal application. Fewer parts, simple structure, easy to install replacement is also a small amount of work. Into a series of products provide, shaft diameter 10-90mm. Mechanical seals rely springs drive, installation, mechanical seal and motor rotation direction must be consistent, reversing spring compensation force will lead to the disappearance of the mechanical seal failure immediately (normal time to adjust the steering motor, mechanical seal restore the sealing function). Our company based on the actual needs of users, can provide two kinds of left-handed and right-handed rotation mechanical seal as needed.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
General pumps factories
Fresh water pump
Circulating pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la fabrica líder de dise?o, fabricación y reparacion de sistemas de cierres en bombas industriales y control de fluidos.Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos mecanicos para bombas de agua,bombas de centrifugas, bombas de turbinas rotativas compresores, mezcladores, reactores,agitadores,monilos y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, ITT,KSB, Andritz, Ekato, Grundfos, Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas



view:1438    lable:ZF155 seals,ceramic seals ,sewage water pumps seal,raw water pump seal, water pump seal,shaft seals suppliers,shaft seals,fabrica sello bomba,fabrica cierre bomba,  Water treatment  Circulating pump  Raw water pump seal  Water pumps  Water suction pump  General type factory
Application
Design features
Single component seal
Pusher
Left direction of rotation
Right direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Shaft via:10-90 mm
Technical data
