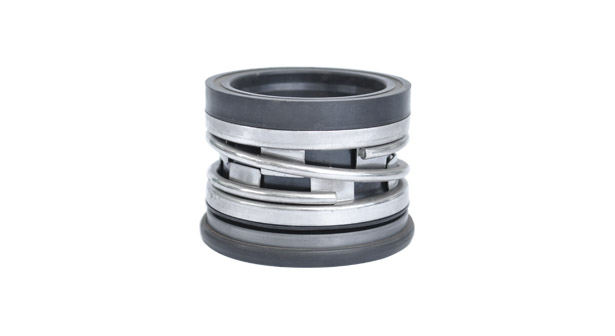

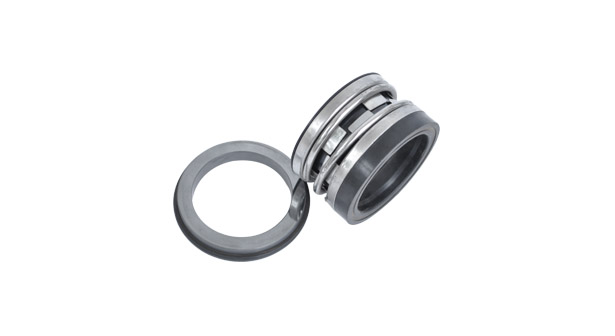

Replacment 2100 John Crane seals

Product Description:Component single mechanical seal. According to the pump mechanical seal cavity structure.
Product No.:2100
PID No.:160005
Product Series:Elastomer Bellow Seals
Application Industry:Chemical industry
Pump Type:Acid pumpAlkali pumpChemical pumps
Product Description



Sdms Seal Co., Ltd. is a complete factory of design, manufacture and repair of mechanical seals for industrial sealing systems and control fluid.We produce inch & metric sizes shaft seals, single spring seals, multi spring seals,wave spring seals,metal bellows,welded metal bellows seals, rubber bellow seals, for pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 2100    Style: mechanical seals elastomer bellows

Material
Sealing ring : hard metal/SiC/graphite
Other metal parts : 304/316
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Component single mechanical seal. According to the pump mechanical seal cavity structure.It can only do a single seal products, but also a series combination of two sets of installation, external flushing water do double mechanical seal apply. Corrosion-resistant rubber bellows and rubber mat L provides a secondary seal,it able to adapt to a variety of corrosive media strength. Stainless steel spring and bellows rubber composition compensation ring to compensate for the force. Seal ring material according to the actual working condition, it offers a variety of optional materials.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Replacement John Crane 2100

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de dise?o, fabricación y reparacion de sello tipo cartucho y sello tipo components para sistemas de sellado industrial y control de fluidos.Fabricamos sellos de componentes, cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, sellos de ballesta, sellos de fuelles de metal para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas

Replacement models, reemplazar modelos
More Models, Más Modelos

Mechanical seal John Crane type 2100, Sello John Crane tipo 2100,


view:649    lable:2100 seal,alkali pump seal,acid pump seal,2100 sello,mechanical seals factory,sello cartucho empresa,John Crane sello,John Crane cierre,sellos mecanicos john crane catalogo,sello mecanico tipo 21,replacement John Crane seals,  Chemical industry  Acid pump  Alkali pump  Chemical pumps  Johncrane
Application
Design features
Single component seal
Non-pusher
Rubber bellows
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Shaft via:10-100 mm
Technical data
