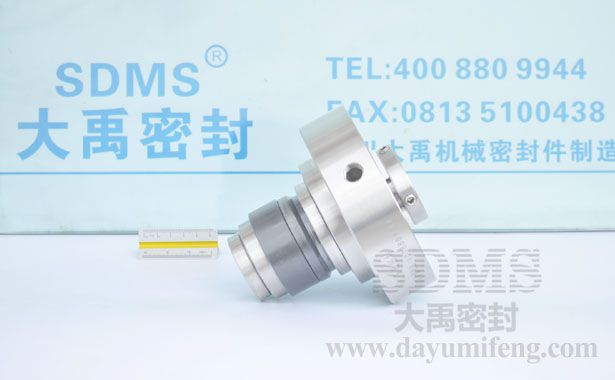

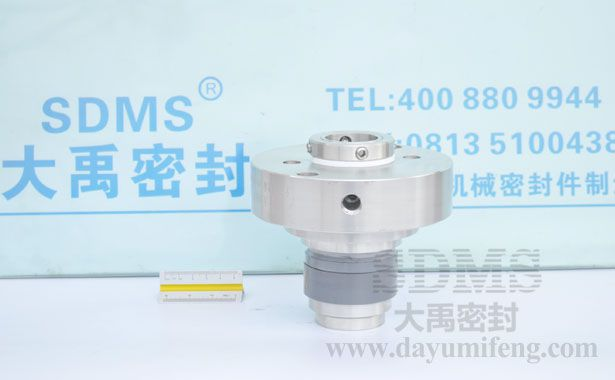

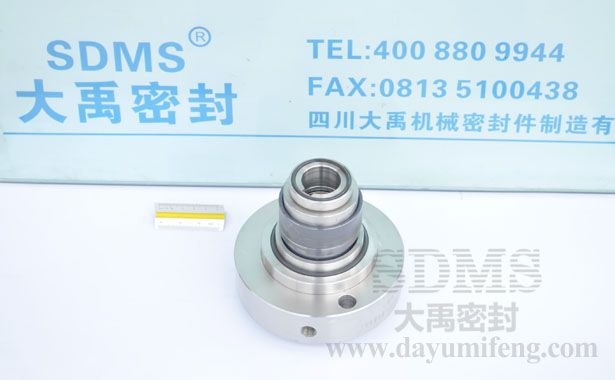

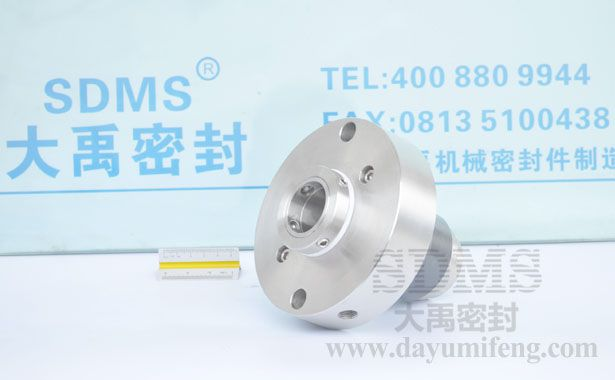

SDMS-CZ35/60 for acid proof pump seal

Product Description:Single cartridge seals for CZ series standard chemical pumps and high temperature pump of Dalian Acid Proof Pump Plant application.
Product Description









Sdms Seal Co., Ltd. is one of the largest seal exporting, manufacturer and repaire in China.
We produce balanced cartridge pump shaft seal, double cartridge pump shaft seal, unbalanced cartridge pump shaft seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann, Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SDMS-CZ3560  Style: mechanical seals cartridge seals



Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge seal for CZ series standard chemical pumps and high temperature pump of Dalian Acid Proof Pump Plant application. The pumps with small shaft diameter used in chemical industry,the material of seal ring is silicon carbide ,so it is not suitable medium particulate matter.Metal structure according to different conditions offer material of 2cr13, 304 and 316 option.Small shaft diameter with high running speed character,so we design the screw tight and keyway two structures for transmission.

Recommended Applications Pumps and Rotating Equipment
Dalian No.2 Acid Proof Pump Plant
CZ series standard chemical pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor de sello mecanico completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos de cartucho equilibrado, cierres mecanicos de cartucho multimuelle, sellos mecanicos de fuelle, sellos mecanicos de fuelle metálico, sellos mecanicos de ballesta, sellos cartuchos simples, sellos dobles de cartucho para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, ITT Flygt, Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt, AES,Alfa Laval entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:1505    lable:Dalian No.2 Acid Proof Pump,acid proof pump seal,CZ chemical pump seal,mechanical seals,high temperature pump seals,proveedor sello mecanico china,  Chemical industry  Oil refining  Pharmaceutical  Water conservancy  Chemical process pump  Chemical standard pumps  Drainage pumps  High temperature pump  Heat transfer fluid pump  Oil transfer pump  Dalian Acid Proof Pump Plant
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:2100 r/min
Shaft via:35 mm
