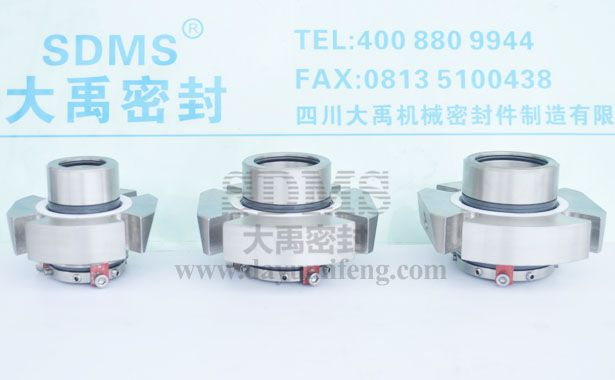

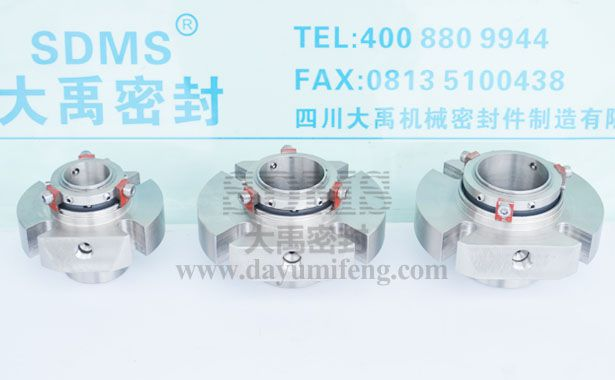

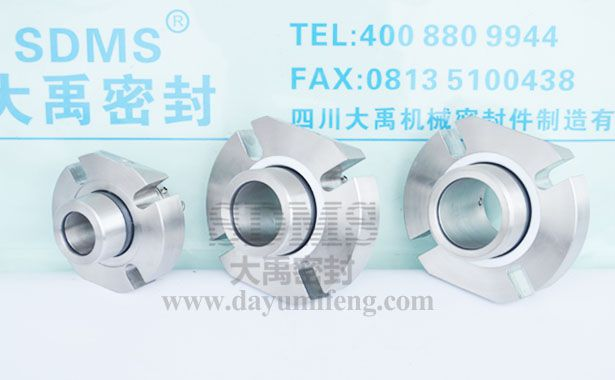

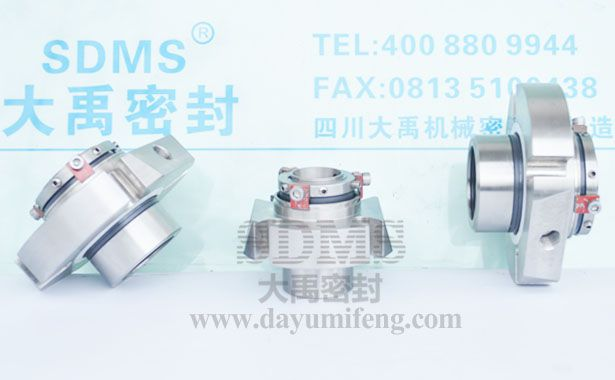

Replacement CARTEX-D/50 seal for metering pump

Product Description:Double cartridge mechanical seals replace to Burgmann standard mechanical seals,metering pump seals application.
Product Description









Sdms Seal Co., Ltd. is a complete distributors of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes mechanical shaft seals, cartridge mechanical seal internal flush, cartridge mechanical seal no flush, mixer seals,agitator seals, reactors seals, mechanical seals for pump shafts, double cartridge seals for equipment revolving. Our products can replacement of John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan, Pac-Seal and customized OEM seals etc. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: CARTEX-D50  Style: mechanical seals cartridge seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Double cartridge mechanical seals replace to Burgmann standard mechanical seals,metering pump seals application.CARTEX is series seals, our company have three kind of 35mm.50mm.55mm. Double faces structure,the radial space of product is relatively small, higher demands on processing precision. U shaped slot of screw installation structure is wider than the screw hole ,so extends the using range of the products. This series of products should not be used for conveying some medium particles.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Replacement Burgmann seals

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sello mecanico cartuchos dobles, sellos mecanicos de multimuelles, sello mecanico de fuelle, sello mecanico fuelle metálico, sellos de ballesta para bombeos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por medidas y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas

view:1513    lable:replacement cartex,metering pump seal,boiler feed pumps seal,Burgmann cartex, cartex sello,burgmann sello,mechanical seal distributors, sello mecanico proveedor,replace cartex seal,replace cartex,  Chemical industry  Food and beverage industry  Oil and gas industry  Boiler feed pumps  Chemical standard pumps  Drainage pumps  Metering pump  Oil pump  Burgmann
Application
Design features
Double cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:2400 r/min
Shaft via:35 mm
