ZMWZ-120/80A for dredging Pump

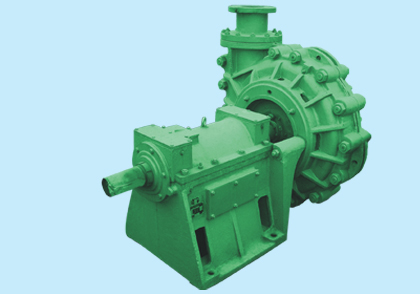

Product Description:Single cartridge mechanical seals for ZGB Slurry Pump of Shijiazhuang Kingda Pump Industry Group Co., Ltd and Shijiazhuang Industrial Pump application.
Product Description











Sdms Seal Co., Ltd. is one of the largest mechanical seals exporting, distributor and repaire in China.We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush,mixer seals,agitator seals, reactors seals for equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

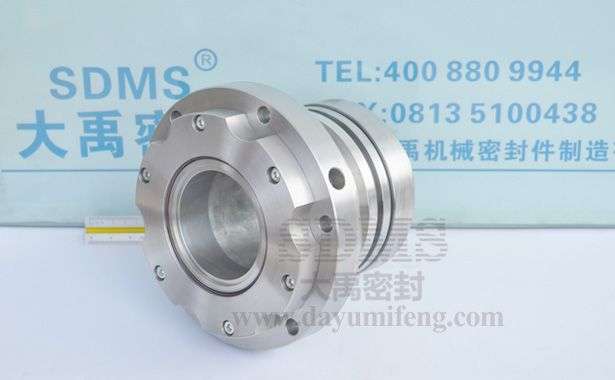

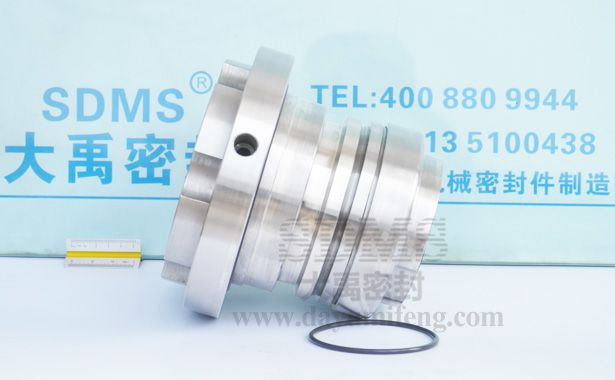

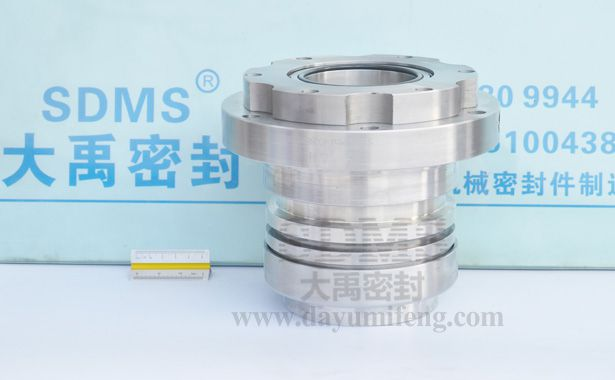

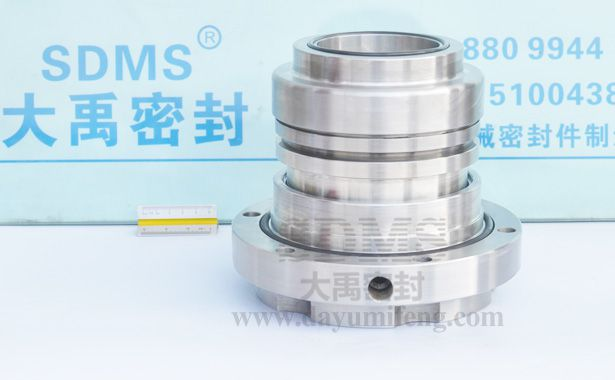

Model No.: ZMWZ-12080A  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for slurry pump of Shijiazhuang Kingda Pump Industry Group Co., Ltd and Shijiazhuang Industrial Pump application. Big spring structure,cemented carbide material,it is used by shaft diameter 80 mm and suitable for all kinds of complex conditions,especially some particles medium.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd
Shijiazhuang Industrial Pump Factory Co., Ltd.
Kingda Slurry Pump Company
SGB pump,ZGJ-60 80 100,4/3E(X)-HH 8/6E-G,6/4E(X)-AH(R),8/6E(X)-AH(R) 80ZGB,100ZGB 150E-L


Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un sello mecanico proveedor completo de dise?o, fabricación y reparacion de sistemas de sellos mecanicos.Fabricamos sellos mecanicos de resorte unico, sellos mecanicos de resortes multiples, sellos mecanicos de fuelle, sellos para fuelle metálico, sellos de ballesta para lama de bomba, bomba para barro ,bombas centrifugas de circulacion, mezcladores, reactores,agitadores y otro equipo rotativo. Fabricamos sellos mecanicos equivalents
 John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

view:1048    lable:4/3E(X)-HH, 8/6E-G,6/4E(X)-AH(R),8/6E(X)-AH(R) ,80ZGB 100ZGB,150E-L,mechanical seals,zgb slurry pump seal,ZGJ-60 80 100,slurry pump seal, sello mecanico proveedor,mechanical seal distributor,  Chemical industry  Metallurgy  Pulp and paper industry  Chemical process pump  Chemical pumps  Chemical standard pumps  Dredging pumps,Dredge pump  Slurry pump,Mud pumps,Sludge pump  Water pumps  Shijiazhuang Kingda Pump Industry Group Co., Ltd  Shijiazhuang Industrial Pump Factory Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1500 r/min
Shaft via:80 mm
Technical data
