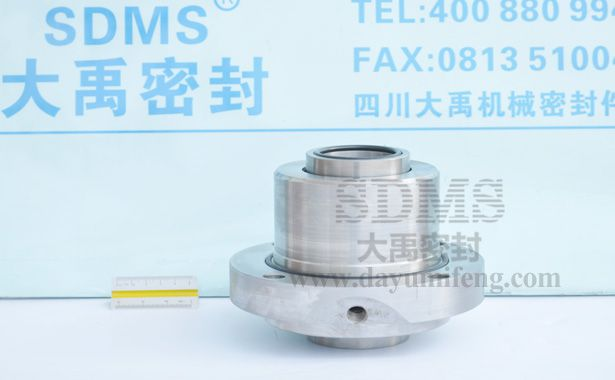

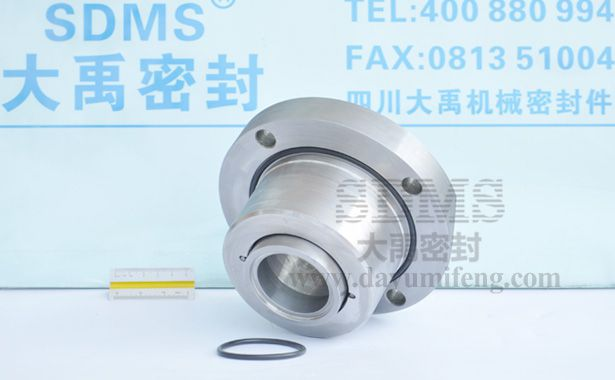

BB-56/50 seals for pump shaft seals

Product Description:BB series double cartridge mechanical seals for LZA, LZB series slurry pump of Seaflow pump, Shandong Shuanglun pump application.
Product Description









Sdms Seal Co., Ltd. is a complete mechanical seals manufacture of design, engineering and repair of industrial sealing systems and control fluid. We offer products and services to very difficult medias: corrosive, clogging and crystallizing fluids.We produce pump shaft seals, wave spring seals, single spring seals, multiple spring seals,welded metal bellows seals, metal roller bellows seal for alumina processing pumps,weir minerals pump ,slurry pump applications. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: BB-5650   Style: cartridge mechanical seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
BB series double cartridge mechanical seals for LZA, LZB series slurry pump of Seaflow pump, Shandong Shuanglun pump application. The flushing structure of above slurry pumps sales available external flushing circulation o without flushing water.Double seals structure, airtight flushinh the circulation space formed between two sets of sealing ring,it needs to be connected to external flushing water before operation,otherwise the mechanical seal are in danger of burn out.Circulation flushing water pressure usually need is more than the seal chamber pressure, this helps to prevent leakage medium , the realization of better sealing performance.

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
Seaflow pump ,SSC pump,25LZ-200,40LZ-200,50LZ-250,50LZ-270,50LZ-355,65LZ-440

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un fabricante large experiencia de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos. Fabrica y venta de  sello mecanico integral, sellos de cartucho doble, sellos mecanicos de fuelle, cierres mecanicos para fuelle metálico, sellos de ballesta para los bombeo de lodo en los procesos de las mineras industrias.
Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas



view:927    lable:ssc pump seal,shuanglun pump seal,25LZ-200,40LZ-200, 50LZ-250,mechanical seals china,slurry pump seal,mud pump seal,sludge pump seal, dredging pump seal, dredge pump seal,sello bombeo lodo,fabricante sello bombeo lodo,pump shaft seals,  Metallurgy  Pharmaceutical  Mining  Fertilizer  Alumina industry  Slurry pump  Dredge pump  Dredging pumps  Mud pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Double cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±5
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:2000 r/min
Shaft via:50 mm
Technical data
