500S-35G from mechanical seals distributes

Product Description:Single cartridge mechanical seals for HFXS series wear resisting double suction pump of Shandong Zhangqiu Blower application.It is new mechanical seals model from SDMSSEAL distributes.
Product Description









Sdms Seal Co., Ltd. is one of the largest slurry pumps mechanical seal supplier, manufacturer and repaire in China.We offer a complete series of slurry pump cartridge seal, double cartridge seal,balanced cartridge seal, unbalanced cartridge seal, cartridge seal equipped with flush to satisfy even heaviest of slurry applications in a wide range of mining industries. We offer products to a wide range of mechanical seal users across the nation.Our product replacement John Crane,Eagle Burgmann,Chesterton, Flowserve,Sharpe, ,Ekato, Grundfos,ITT, Lightnin,Sulzer, ,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

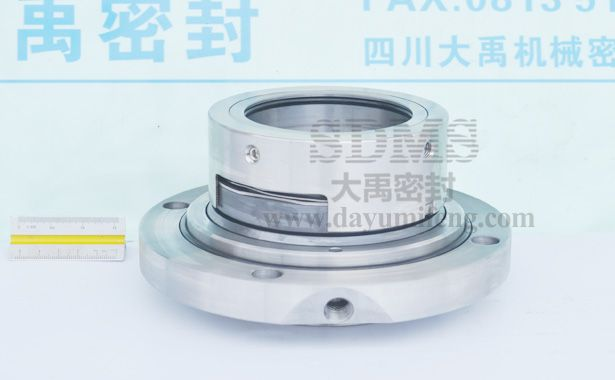

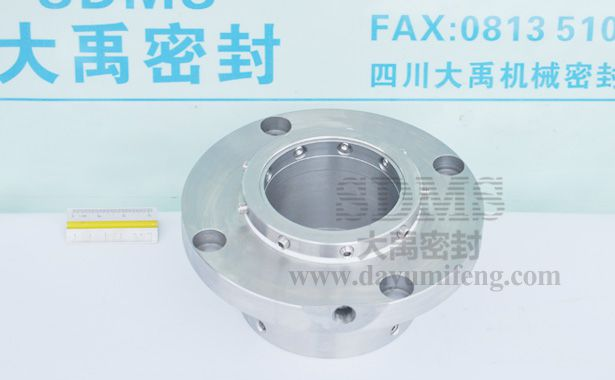

Model No.: 500S-35G  Style: mechanical seals cartridge seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for HFXS series wear resisting double suction pump of Shandong Zhangqiu Blower application.It is new mechanical seals model from SDMSSEAL distributes. We designed cartridge mechanical seal structure base on Burgmann M7N series seal, waveform spring matching silicon carbide seal ring,it completely can adapt to the working condition of coal mine, steel corrosion etc.External flushing circulation structure,flushing water can take away the heat generated by the sealing surface friction, at the same time take normal leaked memory medium particles etc., to ensure that the mechanical seal work under optimal conditions.To extend the mechanical seal service life as much as possible.

Recommended Applications Pumps and Rotating Equipment
Shandong Zhangqiu Blower Co.,Ltd
HFXS series wear resisting double suction pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor que satisface las necesidades y expectativas de sus clients, mediante el dise?o, fabricación y reparacion de productos de alta calidad par a las diferentes  industriales mineras. Fabricamos sello de cartucho mecanico sencillo, sello de cartucho mecanico doble, cartuchos multimuelles,sellos mecanicos de fuelle, sellos mecanicos de ballesta, sellos cartuchos simples, sellos dobles de cartucho para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Flowserve,Sharpe, Ekato, Grundfos, KSB,Lightnin,Sulzer,Warman, Flygt,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

view:1307    lable:500S-35G seal,wear resisting pump seal,double suction pump seal,mechanical seals distributes,slurry pumpsseal supplier,mining industries mechanical seals,proveedor bomba lodo,  Power plant  Metallurgy  Coal chemical industry  Alumina industry  Slurry pump  Pit pumps  Mud pumps  Shandong Zhangqiu Blower Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Bellows style spring
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1500 r/min
Shaft via:83.5 mm
Technical data
