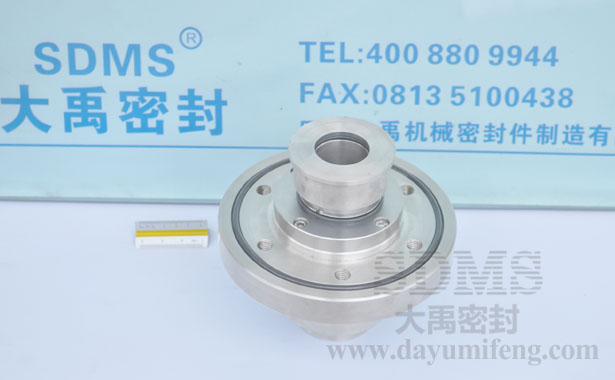

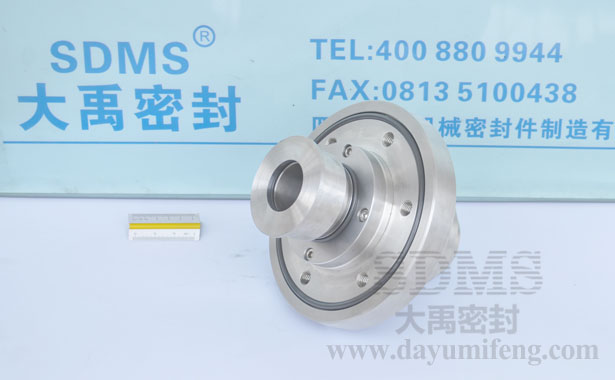

40TL-A35 mechanical seal for feeding pump

Product Description:Single cartridge mechanical seals(without flushing water) for feed pump application.
Product Description









Sdms Seal Co., Ltd. is one of the largest cartridge pump seal supplies,manufacturer and repaire in China.We produce hightly qualified balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for water pumps,industrial pumps,centrifugal pump, mud pump, polypropylene pump etc.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann, Andritz, Grundfos,ITT, Sulzer,Warman,Flygt, AES and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 40TL-A35  Style: mechanical seals cartridge seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals(without flushing water) for feed pump application. Seal ring with he material of silicon carbide and metal with material of stainless steel, it is suitable for all kinds of acidic medium,low corrosive medium.Short of form a complete set of mechanical seal, the existence of short sleeve,it can give the machine to create longer axial sealing use space, even in the equipment an exception occurs, the presence of small amounts of channeling dynamic axis,it also can ensure the normal working of mechanical seal.

Recommended Applications Pumps and Rotating Equipment
General pumps factories
General pumps seal types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un fabricante de cierre mecanico para bombas de agua en China.Fabricamos cierres mecanicos cartucho simple, cierres mecanicos s de fuelle, cierres mecanicos de fuelle metálico, cierres mecanicos de ballesta para bombas horizontables, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB, Warman, ,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.



view:1315    lable:40TL-A35,feeding pump mechanical seal,,water pump mechanical seal,largest cartridge seal supplies china,largest cartridge seal manufacturer china, fabricante cierre mecanico china,  Food and beverage industry  Water conservancy  Environmental protection  Feeding pump  Water / sewage water pumps  General type pumps
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:2200 r/min
Shaft via:40 mm
Technical data
