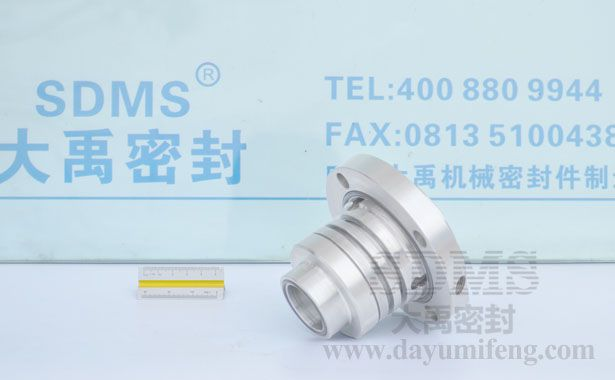

HZ-60/38.1-A2 mechanical seal for trash pump

Product Description:Single cartridge mechanical seal for Shijiazhuang Kingda Pump application.
Product Description








Sdms Seal Co., Ltd. is one of the largest cartridge seals distributor,manufacturer and repaire in China.
We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for magnetic couplings ,compressor seals,agitator seals,pump seals etc.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB, Sulzer,Warman,Flygt, AES, and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: HZ-6038.1-A2  Style: mechanical seals cartridge seals


Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ

Design features
Kunming Jiahe pumps LK series of corrosion resistant acid pump for supporting cartridge mechanical seal.Our company as one of Kunming Jia and pump mechanical seal supply unit, to provide long-term mechanical seal pumps LK series, involving specifications LK1, LK2, LK3, LK4, LK5, LK6. This single-acting mechanical seal cartridge mechanical seal, the replacement is simple and convenient to install, design and flush hole, when production needs can be washed in the external tube. Further design Jianlou hole installation, leak detection hole down, when the mechanical seal leakage appears normal or leaks can detect leaks and exhaust leak media, to prevent continued corrosion, affecting sealing performance.

Recommended Applications Pumps and Rotating Equipment
Kunming Jiahe Science & Technology Co.,Ltd.
Danai Pumps Co., Ltd
LK series pumps

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un distribuidor de sello mecanico para bombas industriales.Fabricamos sellos mecanicos cartucho sencillo, cierres mecanicos cartucho simple, sellos mecanicos de fuelle, sellos mecanicos de fuelle metálico, sellos mecanicos de ballesta, sellos cartuchos simples, sellos dobles de cartucho para bombeos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT, Lightnin,Sulzer, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:1345    lable:kingda pump seal,mechanical pump seal china,3/2C-AH(R) ,HZ-60/38.1-A2 ,mechanical seal china,API Spec Q1 china company, sello mecanico distribuidor,cierres mecanicos distribuidor,  Metallurgy  Pharmaceutical  Pulp and paper industry  Chemical industry  Slurry pump  Water / sewage water pumps  Chemical standard pumps  Mud pumps  Hebei Shibeng Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Inner flushing
Speed:2200 r/min
Shaft via:38.1 mm
Technical data
