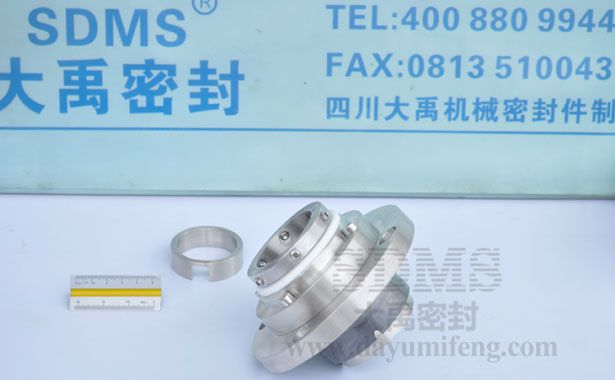

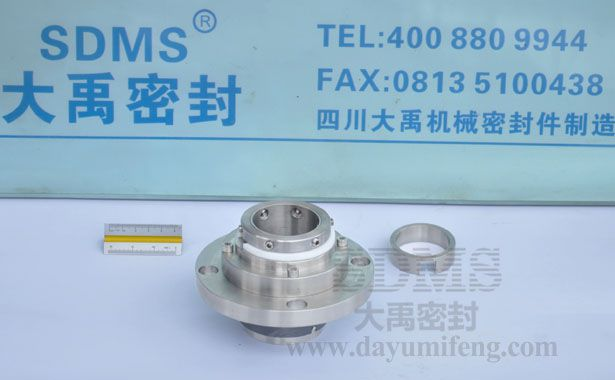

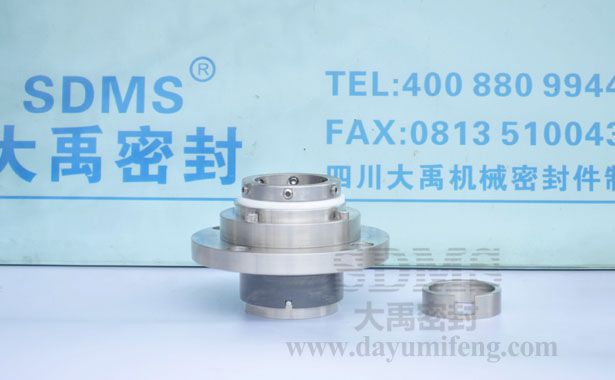

SDMS-TTS-48 drainage pumps seals

Product Description:Single cartridge mechanical seals for Tianmen drainage pumps seals application.
Product Description







Sdms Seal Co., Ltd. is a complete mechanical seals company of design, manufacture and repair of industrial sealing systems and control fluid in China.We produce big size shaft seals, single spring shaft seals, multiple spring component seals,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton, Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SDMS-TTS-48   Style: mechanical seals component

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for Tianmen drainage pumps seals application.Cartridge seal structure without flushing water,sealing medium self-lubricating,so the pump can not run dry. The material of sealing ring is silicon carbide,it is less than the material of silicon carbide alloy in anti-shock performance , therefore it does not apply to medium conditions contain more hardness larger particles.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Tianmen pump seal
General pumps seal types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de sello mecanico dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos en China.Fabricamos sello mecanico de resorte unico, sello mecanico de resortes multiples, sello mecanico de fuelle, sellos de ballesta para bombas químico, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1315    lable:Tianmen pump seal, feeding pump mechanical seal,sewage pumps mechanical seal,drainage pumps mechanical seals,mechanical seals company china,empresa sello mecanico china,  Oil and gas industry  Food and beverage industry  Civil (fire protection, irrigation, drainage)  Water conservancy  Feeding pump  Water / sewage water pumps  Tianmen pump
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:1900 r/min
Shaft via:47 mm
