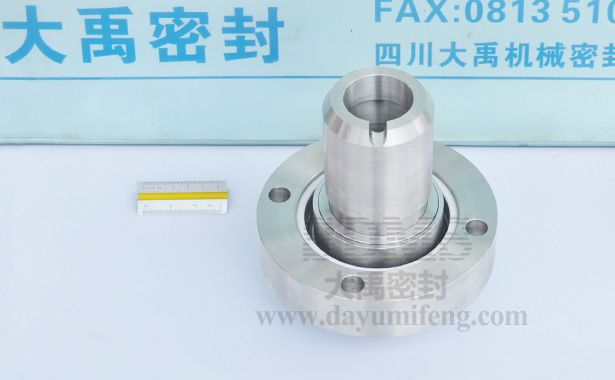

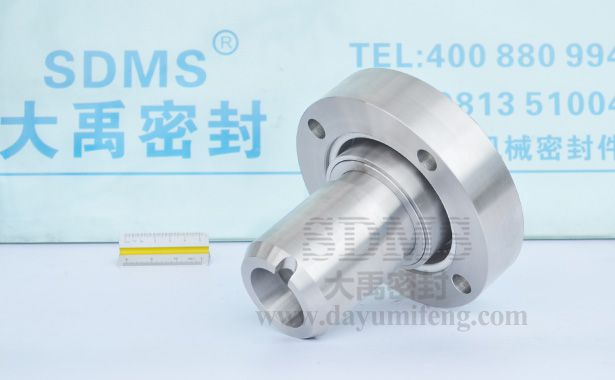

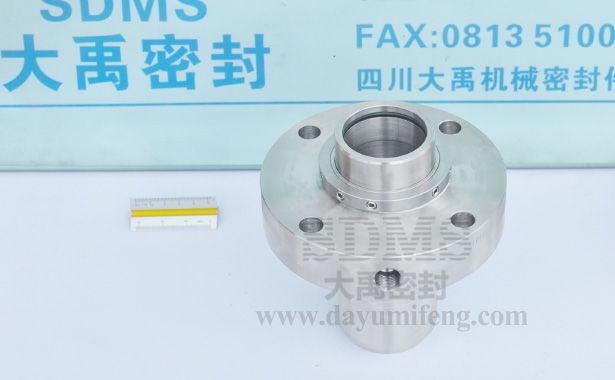

CZJ-318F-65 water pumps seals

Product Description:Single cartridge mechanical seals for Shenyang Blower Works Group Corporation CZJ series pump,water pumps application.
Product Description









Sdms Seal Co., Ltd. is one of the largest mechanical shaft seal exporter, manufacturer and repaire in China.We produce O ring seal type,cartridge seal, rubber bellows seal, balanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton, Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: CZJ-318F-65  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for Shenyang Blower Works Group Corporation CZJ series pump,water pumps application. Double sleeve cartridge structure, internal mechanical seal sleeve and the sleeve shaft mutual suit together.Double sleeve structure,the installation dimensions are more flexible, and it does not affect by the seal installation error. Inner sleeve also play a protective role in the shaft, the shaft can be used to ensure a more long term, saving equipment costs.

Recommended Applications Pumps and Rotating Equipment
Shenyang Blower Works Group Corporation
Replacement KSB pump seal

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado proyectos industrial.Fabricamos sellos mecanicos doble, sellos mecanicos de cartucho, sellos mecanicos de fuelle, sellos mecanicos de fuelle metálico para alta temperatura, sellos mecanicos de ballesta, sellos cartuchos simples para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:1502    lable:water pumps seals,sbw turbo seal,sbw blower seal,CZJ-318F-65, KSB pump seals,oil pump seals,water pumps seals, mechanical seal exporter,sellos mecanicos fuelle metálico, sellos mecanicos alta temperatura,  Oil and gas industry  Fine chemical  Water and waste water technology  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Oil pump  KSB  Shenyang Blower Works Group Corporation
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1800 r/min
Shaft via:50 mm
