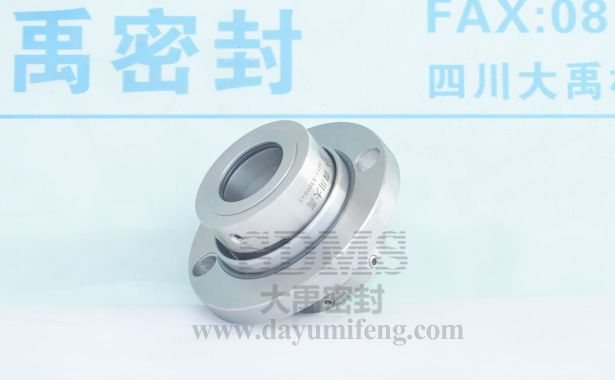

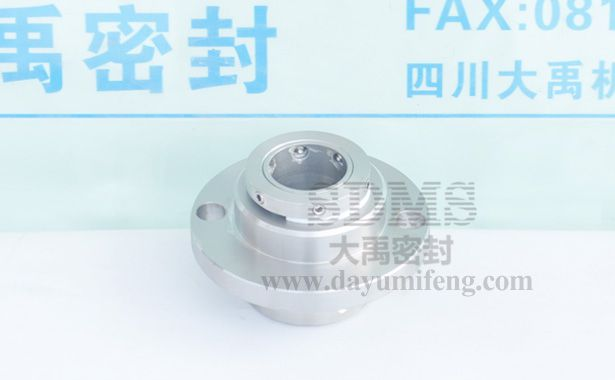

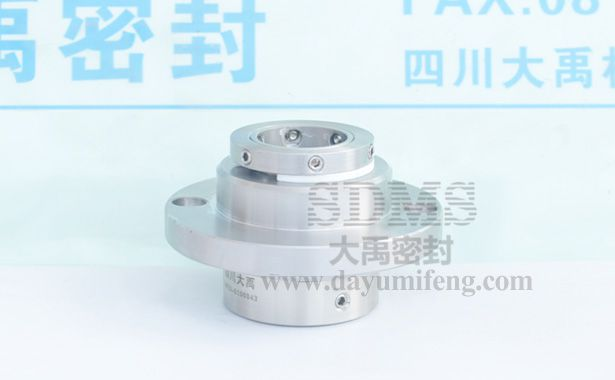

ISR125-100-200B pulp pump mechanical seal

Product Description:Single cartridge mechanical seals for ISR series of heat pumps of Shandong Shuanglun application.
Product Description







Sdms Seal Co., Ltd. is a complete mechanical seals distributor of design, manufacture and repair of industrial sealing systems and control fluid. We offer products and services to a wide range of mechanical seal users international interchangeable with other manufacturers’ mechanical seals.We produce industrial shaft seals, single shaft seals, double shaft seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, metal roller bellows seal for general industrial and heavy industrial applications. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ISR125-100-200B    Style: cartridge mechanical seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for ISR series of heat pumps of Shandong Shuanglun application. Single seal cartridge structure. The mechanical seal designed by reference to Burgmann M7N series of mechanical seals . Used to replace the original component seals, reducing installation errors on the seal has affected to render the product more stable operation.

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
SSC pump, ISR125-100-200,ISR100-65-250,ISR125-100-315,ISR-150-125-250,ISR200-150-250

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la manufactura líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos. Fabrica y venta de sellos de cartucho sencillo,sellos de cartucho doble, sellos mecanicos de fuelle, cierres para fuelle metálico, sellos de ballesta para la mayoria de las aplicaciones de equipo rotatorio en los procesos de las diferentes industrias.
Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1185    lable:ssc pump china,shuanglun pump seal,ISR125-100-200, ISR100-65-250,mechanical seal china,venta sellos cartucho china,fabrica sello cartucho china,mechanical seals distributor china,heavy industrial mechanical seal,  Food and beverage industry  Pulp and paper industry  Salt making  Water conservancy  Feeding pump  Pulp pump  Water / sewage water pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:2400 r/min
Shaft via:35 mm
Technical data
