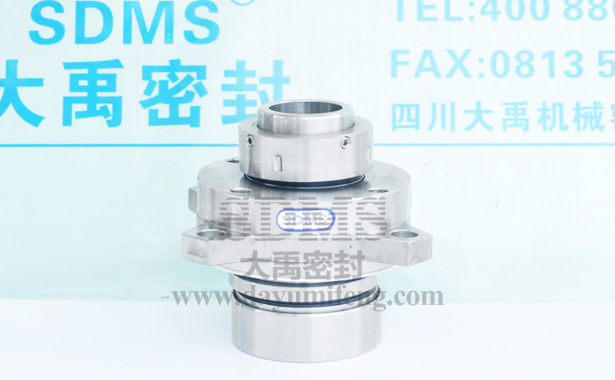

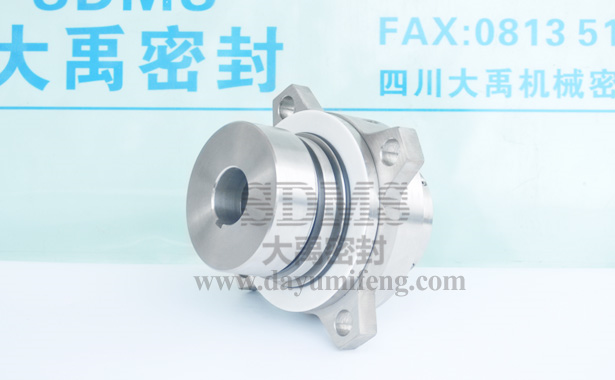

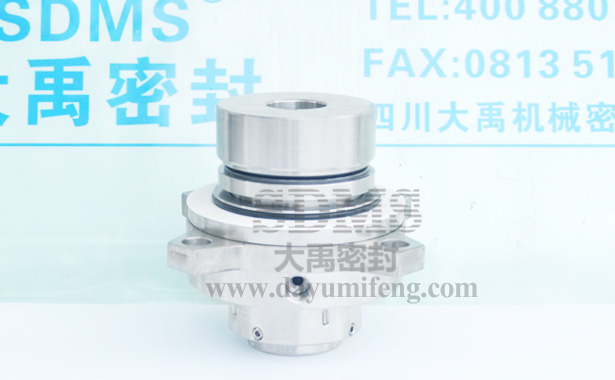

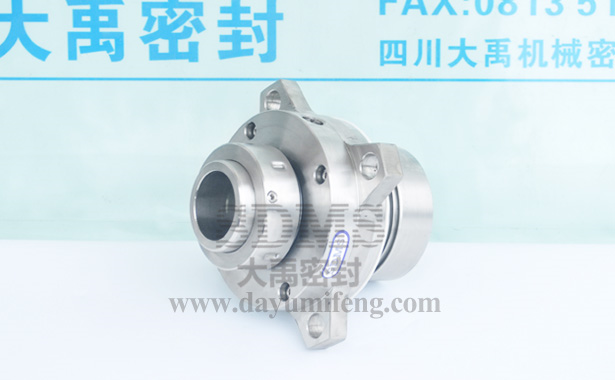

IEJ-38 ,IEJ100-65-200 crude oil sampling pumps seals

Product Description:Double cartridge crude oil sampling pumps seals for International pumps application.
Product Description








Sdms Seal Co., Ltd. is one of the largest shaft mechanical seals seller,manufacturer and repaire in China.We produce balanced cartridge seal, double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: IEJ-38 IEJ100-65-200  Style: mechanical seals double cartridge seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Double cartridge crude oil sampling pumps seals for International pumps application. Cartridge double seal structure, small size, lightweight, quick and easy installation of replacement,external flushing water for two rings provide lubrication and cooling flush sealing function.Seal ring, metal matrix structure and secondary seal all offer a variety of optional materials.

Recommended Applications Pumps and Rotating Equipment
General pumps seal
International pumps seal

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sello mecanico y control de fluidos en China.Fabricamos sellos mecanicos de resorte unico, sellos mecanicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos mecanicos de ballesta para bombeo, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

view:1275    lable:IEJ-38, IEJ100-65-200,oil pump mechanical seal,water conseervancy pumps mechanical seal,crude oil sampling pumps mechanical seals,shaft mechanical seals seller china,shaft mechanical seals manufacturer china,fabricación sello mecanico china,  Oil and gas industry  Civil (fire protection, irrigation, drainage)  Water conservancy  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Oil pump  International pumps
Application
Design features
Double cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:1800 r/min
Shaft via:38 mm
