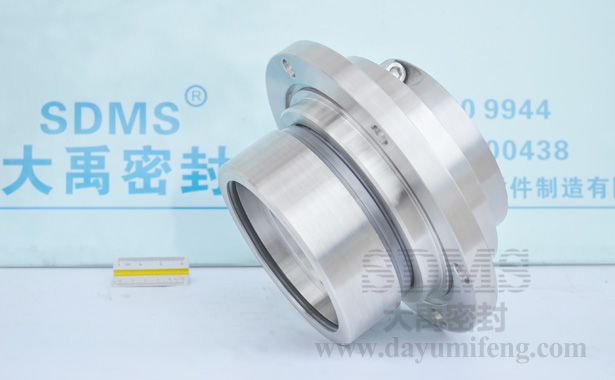

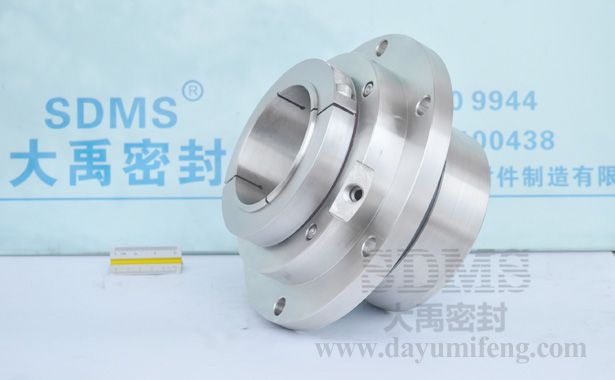

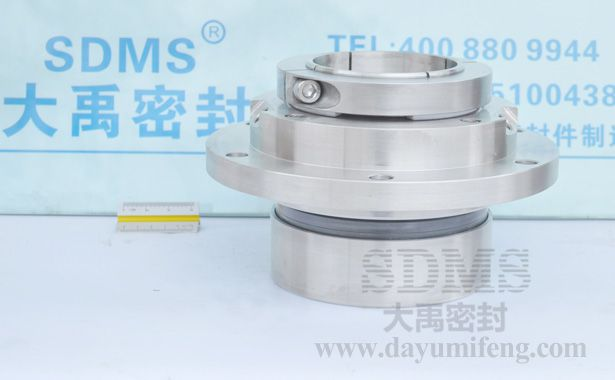

HTM-85D seal for centrifugal pump

Product Description:Single cartridge mechanical seal for Xiangyang Wu Er Wu Pump LC series high efficiency FGD circulating pump , wear resistant horizontal centrifugal pump application.
Product Description








Sdms Seal Co., Ltd. is a complete mechanical seal manufacturers, exporter of design and repair of fluid sealing products. We produce standard component seals, standard cartridge seals, special duty component seals,special duty cartridge seals for pumps, powder shaft seals,mixers, reactors, agitator, slurry shaft seals,  oil shaft seals and other rotating shaft seals. Our supply replacement seals for AES, Ansi, ,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Andritz, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: HTM-85D    Style: mechanical seal cartridge

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal for Xiangyang Wu Er Wu Pump LC series high efficiency FGD circulating pump , wear resistant horizontal centrifugal pump application. Both series of pumps,the seals can be used flushing water or without flushing water. HTM series of mechanical seals design for above pumps type. Reasonable structure, stable and good sealing effect, so that the series has been widely used in mechanical seals, shaft diameter range 25-100mm.

Recommended Applications Pumps and Rotating Equipment
Xiangyang Wu Er Wu Pump Industry Co.,Ltd
LC series of wear-resistant corrosion-resistant centrifugal pump
LC series of flue gas desulfurization of circulating pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es la empresa líder de cierre mecanico dise?o, fabricación y reparacion en China. Fabricamos sello mecanico doble, sello mecanico balanceado,sellos mecanicos tradicionales, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer, Ruhrpumpen  ,Flygt,Katrex,Aflas,AES, Gore, Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1066    lable:wu er wu pump seal,525 pumps seal,mechanical seal OEM,HTM-85D,wear resistant pump seal, corrosion resistant pump seal, centrifugal pump seal, mechanical seal china,mechanical seal cartridge,mechanical seal manufacturers,cierre mecanico empresa,  Metallurgy  Coal chemical industry  Alumina industry  Circulating pump  Desulphurization pump  Water / sewage water pumps  Chemical pumps  Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1400 r/min
Shaft via:85 mm
Technical data
