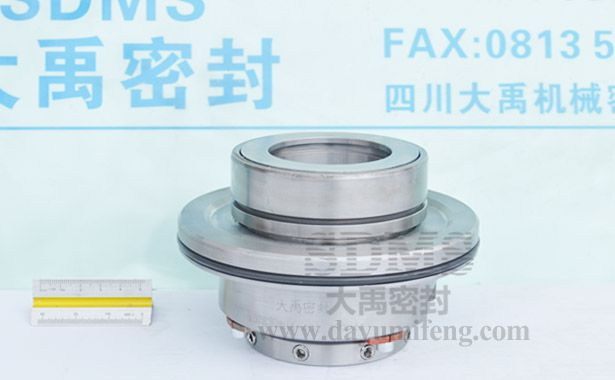

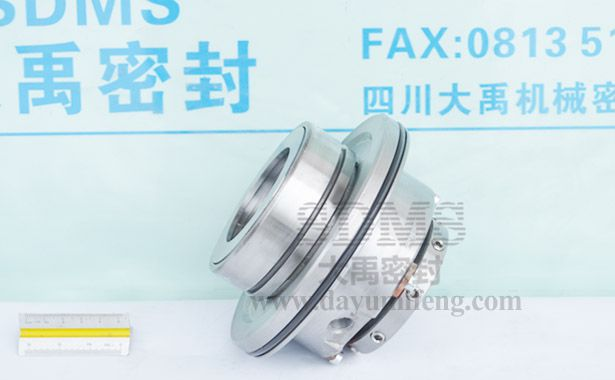

ZGJ-60 for slurry pump seal

Product Description:Single cartridge mechanical seal for Shijiazhuang Kingda Pump AH (R) series application.
Product Description










Sdms Seal Co., Ltd. is one of the largest mechanical pump seals exporter, manufacturer and repaire in China.
We produce highest quality the widest range of standard mechanical seals, balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for chemical processing,conveyor and industrial equipment, food processing,industrial blowers and fans, marine and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZGJ-60  Style: mechanical seals cartridge seals


Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal for Shijiazhuang Kingda Pump AH (R) series application. This series of mechanical seal with shaft diameter range 25-160mm, single cartridge structures, external flushing circulation. According to the actual delivery or the user needs to pump plant unit, we offer the flexibility to adapt to different materials. SiC material of the sealing ring for a variety of alkaline fluid,it is not suitable for NA containing high hardness particles.Carbide seal ring is suitable for acidic medium,but wear resistance and strength are both more better than the SiC ,it can adapt to all kinds of media containing particles.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Kingda Slurry Pump Company
The HS (R) slurry pump
The HS (R) slurry pump
WN type dredging pump
1.5/1B-AH(R) 2/1.5BAH(R)
3/2C-AH(R) 4/3C-AH(R)
1.5/1C-AH(R) 4/3D-AH(R)
12/10ST(X)-AH

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es una fabrica cierre mecanico completo de dise?o, fabricación y reparacion de nivel internacional en China.Fabricamos cierres mecánicos de resorte ondulado, cierres mecánicos de resorte ballesta, cierres mecánicos de fuelle para bombas, sistemas de sellos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1163    lable:mechanical pump seal china,kingda pump seal,1.5/1B-AH(R), 2/1.5BAH(R) ,mechanical seal china,slurry pump seal china,  Power plant  Metallurgy  Mining  Coal chemical industry  Circulating pump  Slurry pump  Dredge pump  Alkali pump  Mud pumps  Hebei Shibeng Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1600 r/min
Shaft via:60 mm
Technical data
