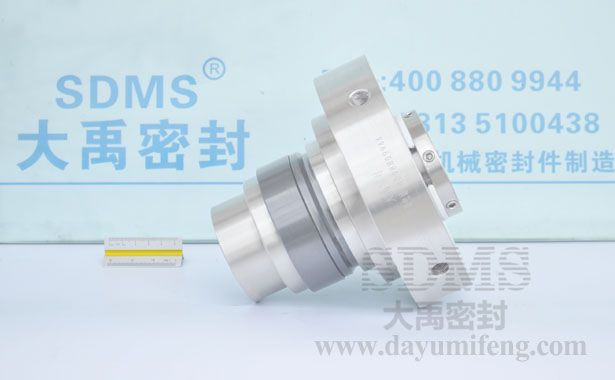

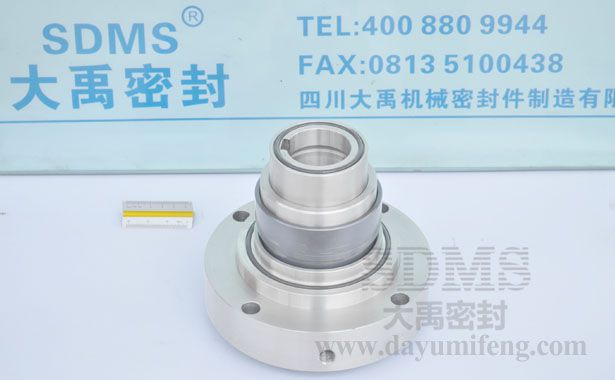

SDMS-CZ55/85 dredge pumps seals

Product Description:Single cartridge seals for CZ series of standard chemical pump,dredge pumps of Zhenjiang Jiangda Pump Technology Co.,Ltd.
Product Description







Sdms Seal Co., Ltd. is a mechanical seals suppliers of design, manufacture and repair of industrial sealing systems and control fluid in China.We produce inch sizes mechanical shaft seals, single spring shaft seals, multiple spring component seals,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for water pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin, Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.


Model No.: SDMS-CZ5585   Style: mechanical seals component


Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge seals for CZ series of standard chemical pump,dredge pumps of Zhenjiang Jiangda Pump Technology Co.,Ltd. Assembled structure, installation simple and quick replacement,rinse cycle cooling system, effectively protect the mechanical seal performance, enhance product life. Great spring structure,it can provide a stable long-term compensation force to compensate for the ring in the installation error of ± 2mm, elastic spring change little. Stretch increases,it will not lead to increased wear of the sealing surface, elastic smaller, the sealing surface will not be because of lack of compensation force generated leakage.
Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Zhenjiang Jiangda Pump Technology Co.,Ltd.
CZ series of standard chemical pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la fabrica líder de dise?o, fabricación y reparacion de sistemas de cierres en bombas industriales y control de fluidos en China.Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos mecanicos para bombas de agua,bombas de centrifugas, bombas de turbinas rotativas compresores, mezcladores, reactores,agitadores,monilos y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, ITT,KSB, Andritz, Ekato, Grundfos, Lightnin,Sulzer,Warman, AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas











view:1190    lable:CZ chemical pump seal,CZ pump seal, mud pumps seals,dredge pump seals,dredge pumps seals,mechanical seals suppliers china,fabrica cierres mecánicos china,  Oil and gas industry  Fine chemical  Coal chemical industry  Slurry pump  Dredge pump  Dredging pumps  Mud pumps  Zhenjiang Jiangda Pump Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1800 r/min
Shaft via:55 mm
Technical data
