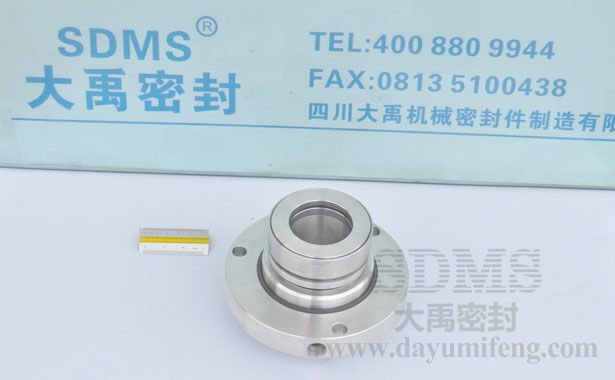

SYM-65/50 single cartridge seal

Product Description:Single cartridge seal with ssembled structure, tight set screw drive, installation replacement quick and easy.
Product Description






Sdms Seal Co., Ltd. is one of the largest cartridge seals manufacturer, engineering and repaire in China.We produce balanced single cartridge seal,double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush,  double cartridge seal equipped with flush for Chemical slurry pumps,heavy duty slurry pumps,corrosion resistant chemical process pumps,high temperature process pumps, high pressure process pumps  and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry AES, John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas, and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SYM-6550  Style: mechanical seals cartridge seals


Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge seal with assembled structure, tight set screw drive, installation replacement quick and easy. Cooling comes rinse cycle system that can adapt to a wider range of temperatures and more complex media situation. Carbide seal ring, high strength, corrosion resistance, good thermal conductivity and so little matrix structure provides a variety of material selection, to adapt to a variety of corrosive media band.

Recommended Applications Pumps and Rotating Equipment
GaoFeng pump
General pumps types

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de bombas.Fabricamos sellos mecanicos para procesos, sellos mecanicos de  cartucho, sellos mecanicos de fuelle, sellos mecanicos para fuelle metálico, sellos mecanicos de ballesta para bombas, industria química, petroquimica, mezcladores, reactores,agitadores, tratamiento de agua, etc. Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:1337    lable:GaoFeng pump seal,single cartridge seal,pulp pump seal,slurry pumps seals,cartridge seals manufacturer china,proveedor sello mecanico bomba China,api sello mecanico china,  Metallurgy  Fine chemical  Pharmaceutical  Chemical industry  Slurry pump  Coal filter press pump  Dredge pump  Pulp pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Mud pumps  GaoFeng pump
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1800 r/min
Shaft via:50 mm
Technical data
