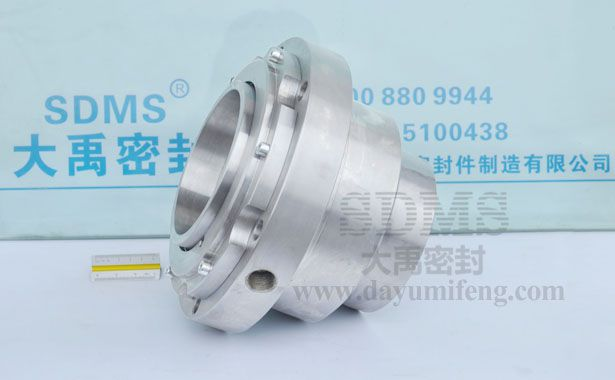

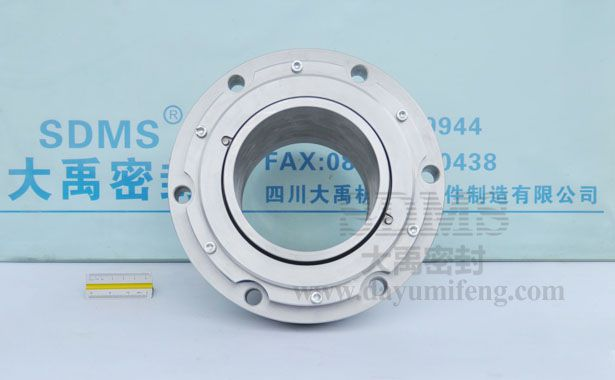

BB-120 chemical standard pumps seals

Product Description:Cartridge double mechanical seals for LZ, JZ, LZA, LZB slurry pumps of Seaflow pumps, Shandong Shuanglun chemical standard pumps application.
Product Description






Sdms Seal Co., Ltd. is a complete seller of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric small sizes shaft seals, single spring small shaft seals, multiple spring component small shaft seals, welded metal bellows seals, rubber bellow seals, pusher seals for pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: BB-120    Style: double cartridge mechanical seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Cartridge double mechanical seals for LZ, JZ, LZA, LZB slurry pumps of Seaflow pumps, Shandong Shuanglun chemical standard pumps application. Above slurry pumps are available in mechanical seal with water or without water,it depond on the actual site. BB series is double mechanical seal application above slurry pumps . Double sides structure is formed between the two sealing ring enclosed space flush cycle.You need to turn on the external flush water before the mechanical seal operation,it can not run dry,otherwise there is danger of mechanical seals burned. Outer loop flushing water pressure usually require more than the seal chamber pressure, which helps to prevent media leaks washing space, to achieve better sealing performance.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
ssc pump,200LZ-550,200LZ-630,200LZ-660,200LZ-750,150LZ-630,200QMB33,200QMB46,100LZ-475

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de sellos mecanicos de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos monoresorte, sellos mecanicos compatibles, sellos mecanicos con fuelle metalico, sello mecanico multiresorte,sello mecanico inferior para bombas y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1404    lable:double cartridge seals,chemical standard pumps seals, sewage water pumps seals,Cartridge double mechanical seals,sellos mecanicos empresa china,  Metallurgy  Pharmaceutical  Fertilizer  Chemical industry  Slurry pump  Dredge pump  Water suction pump  Pulp pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Double cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±5
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1100 r/min
Shaft via:120 mm
Technical data
