Home < Products < Replace AEB-100 latest style

Replace AEB-100 reactor seals

Product Description:Single cartridge mechanical seal for replace Lightnin agitator application.
Product Description












Sdms Seal Co., Ltd. is a mixer, agitator and reactor seals seller of design,engineering and repair of  industrial mixing and blending.We produce large size mixer, agitator and reactor seals, single mixer, agitator and reactor seals, cartridge double mixer, agitator and reactor seals, double mixer, agitator and reactor seals, external mixer, agitator and reactor seals ,short canister mixer, agitator and reactor seals,dual pusher mixer, agitator and reactor seals for single rotor mixers,double rotor mixers,food grade mixers,cement mixers,fertilizer mixers. Our products can replacement of John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler and customized OEM mixer and agitator seals etc. We also do repair of mixer and agitator seal of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

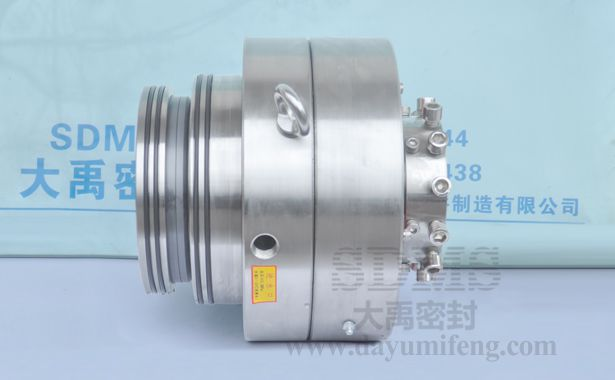

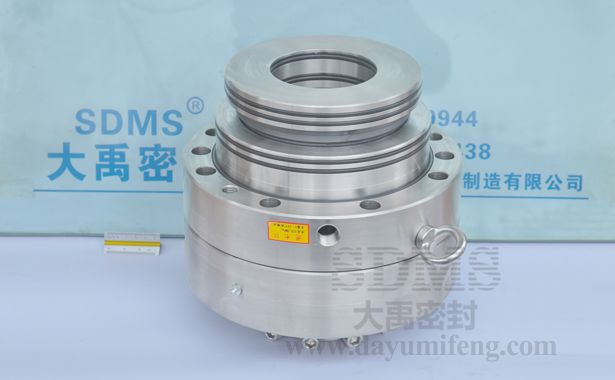

Model No.: AEB-100 latest style  Style: mechanical cartridge mixer, agitator and reactor seals


Material
Sealing ring : SiC
Other metal parts : 304316L
Auxiliary seal : FPM/FKM/MVQ

Design features
Single cartridge mechanical seal for replacement Lightnin agitator application.We can provide Lightnin mixer with shaft diameter 60mm, 80mm ,100mm and other supporting mechanical seal, installation dimensions completely sealed cavity with a stirrer, run protection. AEB-100 is structurally modified AEB-100 had made improvements. The transmission structure and the mechanical seal sleeve separated from one part into two parts, thereby reducing the driving force of structural stress and deformation of the sleeve, to improve the stability of the mechanical seal.

Recommended Applications Pumps and Rotating Equipment
Replace Lightnin blender, mixer,agitator and reactor

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es unos fabricantes, distribuidores y proveedores de sello mecánico   reactores completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos para agitadores
sellos mecanicos para mezcladores, sellos mecanicos para reactores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Replacement models, reemplazar modelos
More Models, Más Modelos

Lightnin reactor seals type 1VSF-22, Sello mecanico Lightnin reactor tipo 1VSF-22,
Lightnin reactor seals type 2VSF-37, Sello mecanico Lightnin reactor tipo 2VSF-37,
Lightnin reactor seals type 2VSF-45, Sello mecanico Lightnin reactor tipo 2VSF-45,


view:1455    lable:reactor seals ,mixer seals seller, agitator seals seller, reactor seals seller, fabricantes sello mecánico reactores, distribuidores sello mecánico reactores, proveedores sello mecánico reactores, 1VSF-22,2VSF-37, 2VSF-45,  Power plant  Metallurgy  Coal chemical industry  Mixer  Plant spray tower side agitator  Reactor stirrer  Lightnin
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1200 r/min
Shaft via:100 mm
Technical data
