Home < Products < AEB-80

Replacemente AEB-80 agitator seals

Product Description:Single cartridge mechanical seals for Lightnin agitator seals application.
Product Description













Sdms Seal Co., Ltd. is a mixer, agitator and reactor seals exporter of design,engineering and repair of  industrial mixing and blending.We produce large size mixer and agitator seal, single mixer and agitator seal, cartridge double mixer and agitator seal, double mixer and agitator seal, external mixer and agitator seal, short canister mixer and agitator seal,dual pusher mixer and agitator seal for single rotor mixers,double rotor mixers,food grade mixers,cement mixers,fertilizer mixers. Our products can replacement of John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler and customized OEM mixer and agitator seals etc. We also do repair of mixer and agitator seal of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

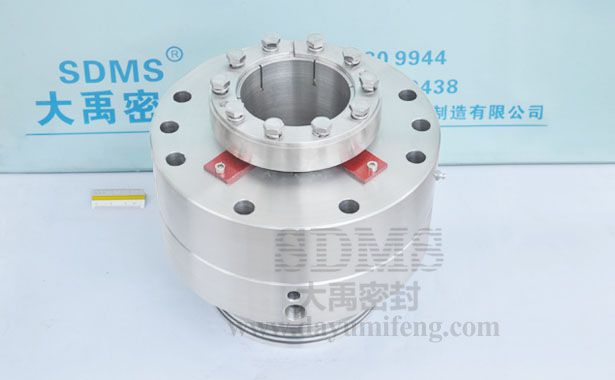

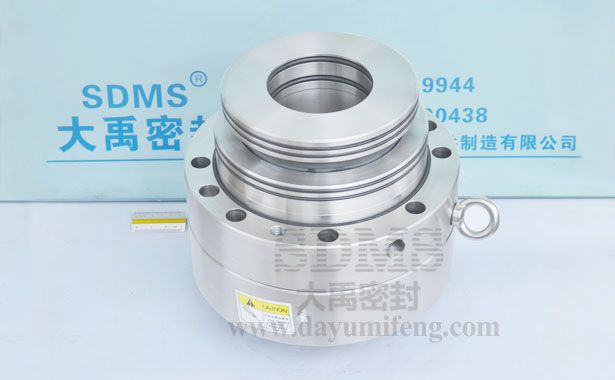

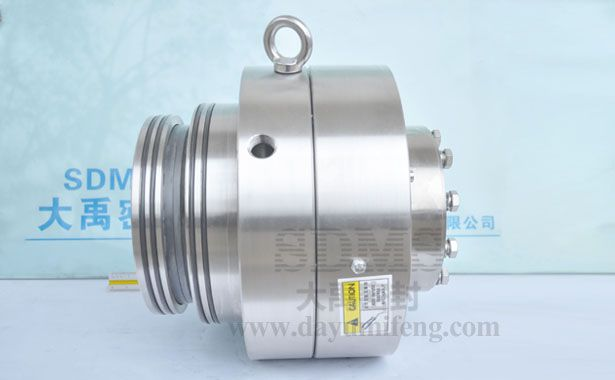

Model No.: AEB-80  Style: mechanical cartridge mixer, agitator and reactor seals


Material
Sealing ring : SiC
Other metal parts : 304/316L
Auxiliary seal : FPM/FKM/MVQ

Design features
Single cartridge mechanical seals for Lightnin reactor application. We can provide Lightnin reactor with shaft diameter 60mm, 80mm ,100mm and other supporting mechanical seal, installation dimensions completely sealed cavity with a stirrer, run protection.

Recommended Applications Pumps and Rotating Equipment
Lightnin mixer, agitator and reactor

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es unos fabricantes, distribuidores y proveedores de sello mecánico agitadores dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos cierres mecanicos para agitadores
cierres mecanicos para mezcladores, cierres mecanicos para reactores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Replacement models, reemplazar modelos
More Models, Más Modelos

Lightnin agitator seals type 1VSF-22, Sello mecanico Lightnin agitador tipo 1VSF-22,
Lightnin agitator seals type 2VSF-37, Sello mecanico Lightnin agitador tipo 2VSF-37,
Lightnin agitator seals type 2VSF-45, Sello mecanico Lightnin agitador tipo 2VSF-45,




















view:1452    lable:mixer seals exporter, agitator seals exporter, reactor seals exporter, fabricantes cierres mecanicos agitadores, distribuidores cierres mecanicos agitadores, proveedores cierres mecanicos agitadores,agitator seals,distribuidores cierres agitadores,cierres agitadores,  Power plant  Pharmaceutical  Coal chemical industry  Mixer  Plant spray tower side agitator  Reactor stirrer  Lightnin
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1500 r/min
Shaft via:80 mm
Technical data
About information
