IH-35S seal for Wu Er Wu Pump

Product Description:Cartridge mechanical seal for Wu Er Wu pump IHE type wear and corrosion resistance pumps application.
Product Description











Sdms Seal Co., Ltd. is one of the largest cartridge mechanical seals distributor,manufacturer and repaire in China.We produce hightly qualified single face cartridge seal, double face cartridge seal, unbalanced cartridge seal, balanced cartridge seal, cartridge seal equipped with flush, double cartridge seal suited for heavy-duty for slurry pumps,industrial pumps,centrifugal pump, mud pump, polypropylene pump etc.We offer OEM Mechanical Seal to a wide range of mechanical seal users across the international market.We carry Agualisa, John Crane,Eagle Burgmann,Sharpe,Ekato, ITT, Lightnin,Sulzer,Warman,Flygt, AES and KSB products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

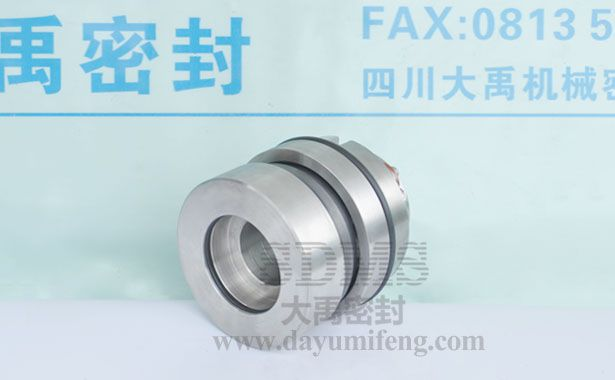

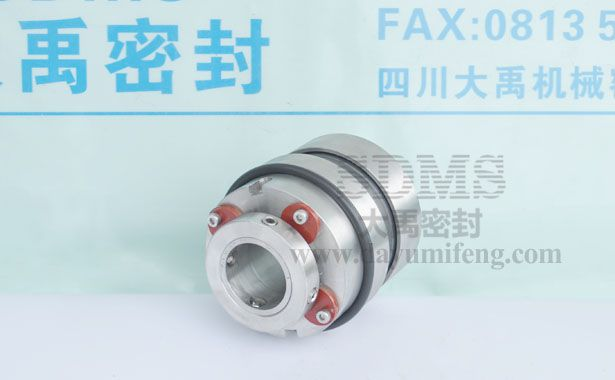

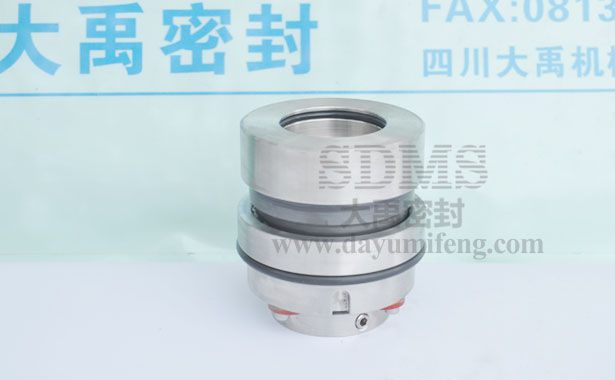

Model No.: SIH-35S  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Cartridge mechanical seal for Wu Er Wu pump IHE type wear and corrosion resistance pumps application. Our company is as one of supplier of Wu Er Wu pump mechanical seal, providing the long-term series of pump mechanical seals, involving various shaft, there IH-25, IH-35, IH-50, IH-50. Single seal cartridge mechanical seal, the replacement is simple and convenient to install, no external rinse water. The mechanical seal is installed without screws positioning without relying keyway anti-rotation to solve the material and reduce the cost of the product.

Recommended Applications Pumps and Rotating Equipment

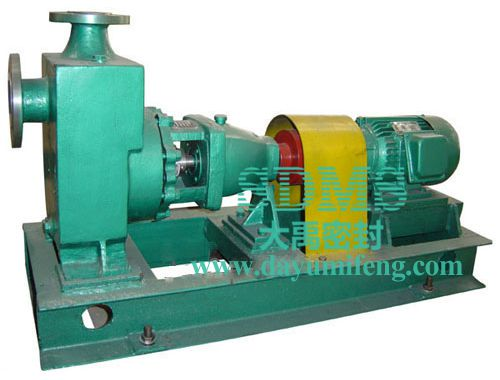

Xiangyang Wu Er Wu Pump Industry Co.,Ltd
IHE-50-32-250,IHE-65-40-250,IHE-80-50-250,IHE-100-80-160,IHE-125-100-200,IHE-125-100-400

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un distribuidor de sello mecanico para bombas de agua.Fabricamos sellos de ballestas, sello con muelle conico,sello multimuelle doble, sellos mecanicos de fuelle metálico,  sellos cartuchos simples, sellos dobles de cartucho para bombas horizontables, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son Lightnin,Sulzer,Warman, John Crane,Eagle Burgmann, Flowserve,Sharpe, Andritz, Ekato,Grundfos,ITT,KSB, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1852    lable:wu er wu pump seal,525 pumps seal,mechanical seal OEM,IH-35S,IHE-50-32-250,IHE-65-40-250,cartridge seal,cartridge seal china,mechanical seal china,china mechanical seal, api sello mecanico,sello mecanico Ekato,  Oil and gas industry  Fine chemical  Pharmaceutical  Chemical industry  Acid pump  Water suction pump  Chemical pumps  Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
Application
Design features
Single cartridge seal
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:2000 r/min
Shaft via:35 mm
