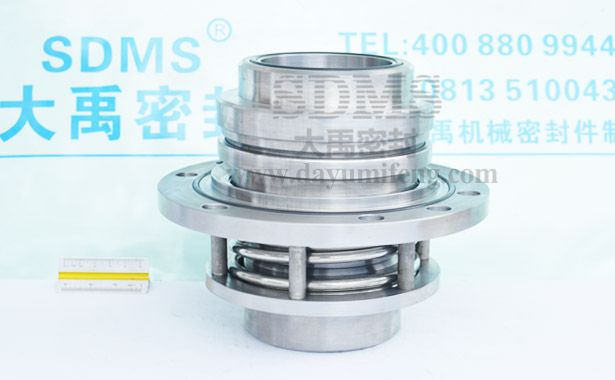

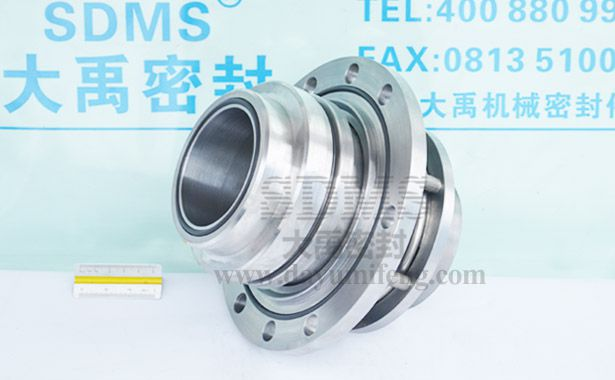

100ZJA-I-A46W for mud pumps seal

Product Description:Single cartridge mechanical seal,it doesn't need external flushing water.It's suitable on-site environments where cann't provide flushing water.
Product Description









Sdms Seal Co., Ltd. is one of the largest seal exporting, manufacturer and repaire in China.
We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,hydraulic turbines,reactors,agitators,mixers,fermenters,filters and rotating machinery.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB, Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 100ZJA-I-A46W  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal,it doesn't need external flushing water.It's suitable on-site environments where cann't provide flushing water. Providing an elastic force compensation consists of a large spring, it can be used within the installation error range of ± 2mm. Spring placed outside the mechanical seal chamber, no contact with the media.To prevent corrosion of the spring in a sealed external chamber also facilitate observation, a certain leak blockage, but also easy to clean. This structure can effectively enhance the mechanical seal life.

Recommended Applications Pumps and Rotating Equipment
Hua Cheng Grounp,100ZJA-I-A33,80ZJA-I-A42,150ZJA-I-A57,250ZJA-I-A80,50ZJA-I-A50
Shanghai huacheng Trade Group Co., Ltd.
Sump pumps seal


Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de sellos mecanicos de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos de cartucho conexiones para lavado, sellos mecanicos de cartucho equilibrado, sellos mecanicos de multimuelle, sellos mecanicos de fuelle metálico, sellos mecanicos de ballesta, sellos cartuchos simples, sellos dobles de cartucho para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1130    lable:100ZJA-I-A46W, hua cheng pumps seal,mechanical seal, dredging pumps seal, pit pumps seal, sump pumps seal,mud pumps seal, shanghai huacheng trade, proveedor sellos mecanicos,  Fine chemical  Pharmaceutical  Fertilizer  Chemical industry  Slurry pump  Dredging pumps  Pit pumps  Mud pumps  Hua Cheng Grounp
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without water
Speed:1500 r/min
Shaft via:80 mm
Technical data
