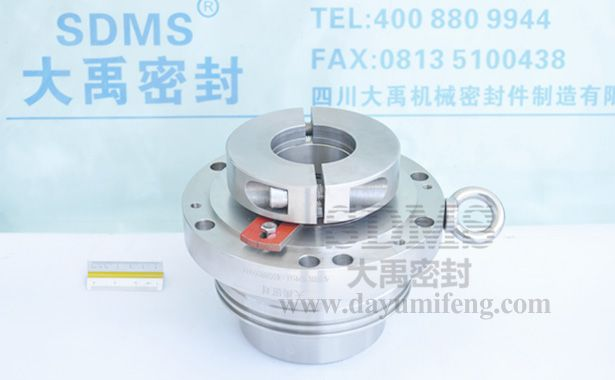

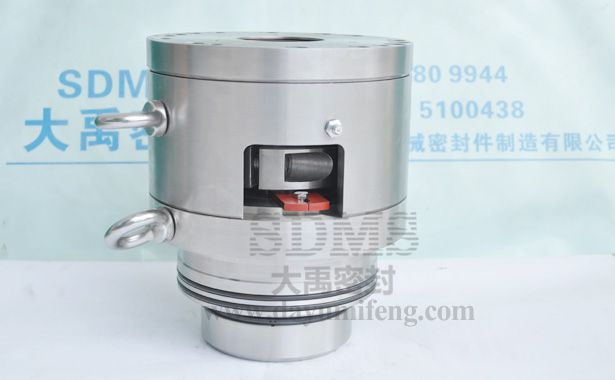

Replacemente AEB-60WS Lightnin seals

Product Description:Single cartridge mechanical seal for replacemente Lightnin blender application.The product is based on the original AEB-60 model has been improved on, it will play the role of a stable positioning of the bearing portion and the sealing portion made separation.
Product Description










Sdms Seal Co., Ltd. is a mixer, agitator and reactor seals distributor of design,engineering and repair of  industrial mixing and blending.We produce large size mixer, agitator and reactor seals, single mixer, agitator and reactor seals, cartridge double mixer, agitator and reactor seals, double mixer, agitator and reactor seals, external mixer, agitator and reactor seals ,short canister mixer, agitator and reactor seals,dual pusher mixer, agitator and reactor seals for single rotor mixers,double rotor mixers,food grade mixers,cement mixers,fertilizer mixers. Our products can replacement of John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,Cheminneer,Pfaudler and customized OEM mixer and agitator seals etc. We also do repair of mixer and agitator seal of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: AEB-60WS  Style: mechanical cartridge mixer, agitator and reactor seals


Material
Sealing ring : SiC
Other metal parts : 304/316L
Auxiliary seal : FPM/FKM/MVQ

Design features
Single cartridge mechanical seal for replacement Lightnin blender application.The product is based on the original AEB-60 model has been improved on, it will play the role of a stable positioning of the bearing portion and the sealing portion made separation. When it was installed, the two parts can be installed separately, to avoid affecting the operation of the installation process when the bearing seal assembly to beat the impact and reduce the risk of product installation.

Recommended Applications Pumps and Rotating Equipment
Replacemente Lightnin blender, mixer, agitator and reactor

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es unos fabricantes, distribuidores y proveedores de sello mecánico  agitadores completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos para agitadores
sellos mecanicos para mezcladores, sellos mecanicos para reactores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1371    lable:agitadores sello,lightnin seals, fabricantes sello agitadores, distribuidores sello agitadores, proveedores sello agitadores,AEB-60WS seal,mixer seals distributor, agitator seals distributor, reactor seals distributor,sellos agitadores,distribuidores sello agitadores,  Power plant  Metallurgy  Coal chemical industry  Mixer  Plant spray tower side agitator  Reactor stirrer  Lightnin
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1800 r/min
Shaft via:60 mm
Technical data
