Home < Products < HZ-120/85.8-A

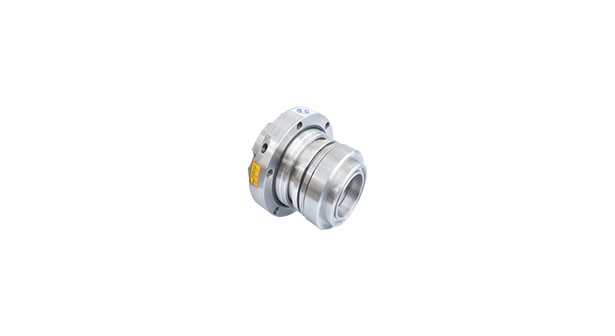

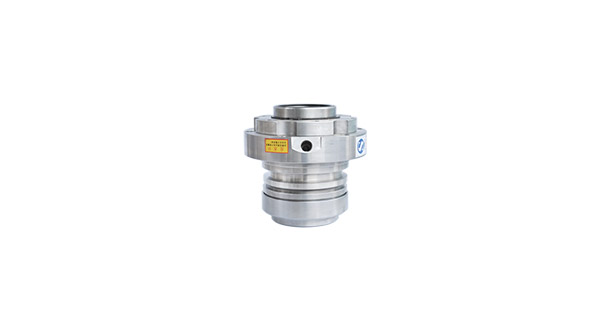

HZ-120/85.8-A2 for mud pumps seals

Product Description:Integrated mechanical single seals for Shijiazhuang Kingda Pump and mud pumps seals application.
Product Description





Sdms Seal Co., Ltd. is one of the largest mechanical seals exporting, distributor and repaire in China.We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush,mixer seals,agitator seals, reactors seals for equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: HZ-12085.8-A  Style: mechanical seals cartridge seals


Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Integrated mechanical single seals for Shijiazhuang Kingda Pump and mud pumps seals application.It has clamping drive, install replacement quick and easy. Cooling comes rinse cycle system that can adapt to a wider range of temperatures and more complex media situation. Seal ring and the matrix structure provides a variety of material selection, to adapt to a variety of corrosive media band.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Shijiazhuang Industrial Pump Factory Co., Ltd.
Kingda Slurry Pump Company
SGB pump,100ZGB, 150ZGB,80ZGB


Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un sello mecanico proveedor completo de dise?o, fabricación y reparacion de sistemas de sellos mecanicos.Fabricamos sellos mecanicos de resorte unico, sellos mecanicos de resortes multiples, sellos mecanicos de fuelle, sellos para fuelle metálico, sellos de ballesta para lama de bomba,la bomba de lodo,bomba para barro ,compresores, mezcladores, reactores,agitadores y otro equipo rotativo. Fabricamos sellos mecanicos equivalents
 John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1401    lable: bomba lodo,bomba barro,lama bomba,sellos mecanicos china,mud pumps seals,shijiazhuang industrial pump,kingda pump,SGB pump,mechanical seals distributor,proveedor sello mecanico,  Chemical industry  Pharmaceutical  Pulp and paper industry  Circulating pump  Kingda pump  SGB pump  Slurry pump,Mud pumps,Sludge pump  Shijiazhuang Kingda Pump Industry Group Co., Ltd  Shijiazhuang Industrial Pump Factory Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1450 r/min
Shaft via:85.8 mm
Technical data
