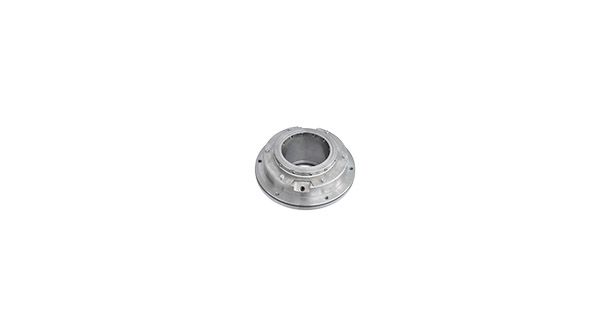

ZGJ-130 for Kingda pump seals

Product Description:Cartridge single mechanical seal for Kingda Slurry Pump Company Application.
Product No.:ZGJ-130
PID No.:141328
Product Series:Cartridge Mechanical seals
Application Industry:Chemical industry
Pump Type:Slurry pump,Mud pumps,Sludge pumpKingda pump
Product Description




Sdms Seal Co., Ltd. is one of the largest mech seals exporter, manufacturer and repaire in China.
We produce highest quality the widest range of standard mechanical seals, balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for industrial pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZGJ-130  Style: mechanical seals cartridge seals


Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Cartridge single mechanical seal for Kingda Slurry Pump Company Application. It has self-flushing system, widely used in various media case with solid particles, external water can wash away good normal leak sealing medium and particulate matter, prevent the deposition of an impact on the mechanical seal . More stars to compensate for uniform circumferential spring ring provides compensation force. Spring arranged on the sealing flange, immersed in the wash water environment, no contact with the media, the media effectively prevent corrosion of the spring. Spring does not rotate together with the shaft during mechanical seal operation, put an end to the centrifugal force on the spring, the product can be used in a wider speed range.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Kingda Slurry Pump Company
The HS (R) slurry pump
The HS (R) slurry pump
WN type dredging pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es una fabrica sello mecanico y cierre mecanico completo de dise?o, fabricación y reparacion de nivel internacional.Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, sistemas de sellos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1149    lable:Slurry pump seal,Kingda pump seal, HS pump seals,WN pump seal,ZGJ-130 seal,mech seals exporter,fabrica sello mecanico,fabrica cierre mecanico,kingda slurry pump seal,  Chemical industry  Kingda pump  Slurry pump,Mud pumps,Sludge pump  Shijiazhuang Kingda Pump Industry Group Co., Ltd
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1200 r/min
Shaft via:130 mm
