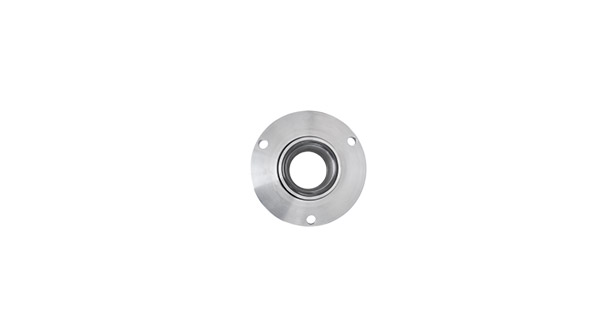

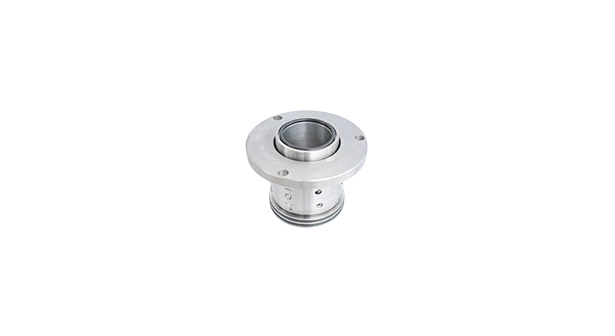

80DT-A36,100DT-36,65 sello para la bomba de lodo

Product Description:SGB pump DT Series desulfurization pumps supporting mechanical seal. Mechanical seal for the double seals component, supporting desulfurization pumps are assembled together, just to reach the normal operating position.
Product Description




Sdms Seal Co., Ltd. is a complete mech seals distributor of design, manufacture and repair of industrial sealing systems and control fluid. We offer products and services to a wide range of mechanical seal users international interchangeable with other manufacturers’ seals.We produce inch & metric sizes shaft seals, single spring shaft seals, multiple spring component seals,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.


Model No.: 80DT-A36,100DT-36,65    Style: mechanical seals component


Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
SGB pump DT Series desulfurization pumps supporting mechanical seal.Mechanical seal for the double seals component, supporting desulfurization pumps are assembled together, just to reach the normal operating position. Double-end structure, the need for an external high voltage (more than moving a sealing medium pressure) rinse water, wash water sealing medium and media together for the end-rings provide lubrication and seal flushing effect, atmospheric side seal ring alone against flushing water lubrication and cooling. Two sealing rings share a small spring, a small set of springs from the spring seat through-holes and fixed position, the spring moves back and forth along the axial direction of the process in the through hole, the elastic force will not be affected, to provide a stable two ring seal long-term compensation force. The advantage of this structure are: the normal functioning of the mechanical seal in the installation error of ± 5mm.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Industrial Pump Factory Co., Ltd.
SGB pump,250DT, 200DT,150DT,100DT,80DT,65DT,40DT,25DT

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos. Fabrica y venta de sellos mecanicos de resorte unico, cierres mecánicos de resortes multiples, sellos mecanicos de fuelle, cierres para fuelle metálico, sellos de ballesta para la bomba de lodo, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1356    lable: bomba lodo,SGB pump seals, pusher seals,250DT, 200DT, 150DT, 100DT, 80DT, 65DT, 40DT, 25DT,80DT-A36,100DT-36,seal,mech seals distributor,venta sello mecanico,venta cierre mecanico,  Chemical industry  Chemical fiber  Oil and gas industry  Power plant  SGB pump  Slurry pump,Mud pumps,Sludge pump  Shijiazhuang Industrial Pump Factory Co., Ltd.
Application
Design features
Double component seals
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±5
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:1450 r/min
Shaft via:65 mm
