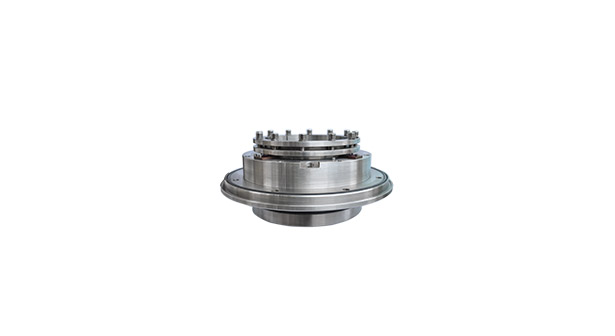

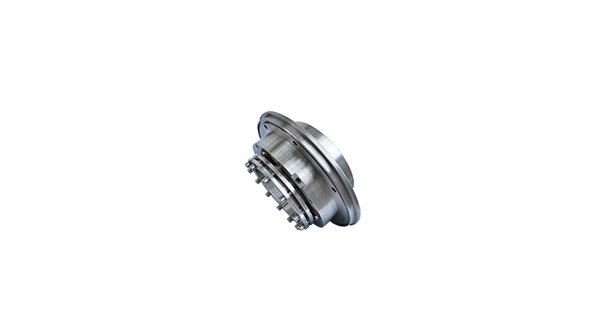

Replac TLJ-220 for warman slurry pumps

Product Description:Big shaft mechanical seal. Cartridge type mechanism for easy installation and replacement warman slurry pumps.
Product Description



Sdms Seal Co., Ltd. is one of the largest seal exporter, manufacturer and repaire in China.
We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush,mixer seals,agitator seals, reactors seals for equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: TLJ-220  Style: mechanical seals cartridge seals


Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Big shaft mechanical seal for Kingda Pump application. Cartridge type mechanism for easy installation and replacement. Reasonable rinse cycle cooling system, increases the mechanical seal to maximize pot life, reduces installation and replacement frequency, effectively saving production and processing costs. The overall structure of silicon carbide seal ring and corrosion-resistant metal alloy material, ensure that the mechanical seal in a variety of corrosive media functioning.


Recommended Applications Pumps and Rotating Equipment

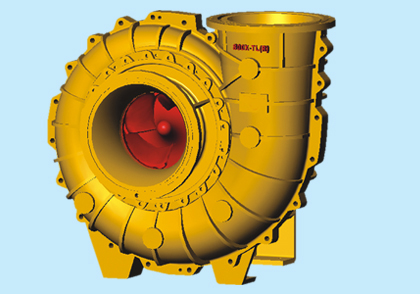

Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Kingda Slurry Pump Company
warman pumps,warman slurry pumps
700X-TLR 800X-TL 800X-TLR 1000X-TL 1000X-TLR
700GSL 800GSL 1000GSL

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es una exporta cierre mecanico completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1349    lable:mechanical seals exporter,slurry pumps seal,replace Wurman pumps seal,shaft seal china,700GSL seal, 800GSL seal,1000GSL seal,TLJ-220 seal,kingda pump seal, kingda slurry pump seal,exporta cierre mecanico,replace Warman pump seal,replacment Warman pump seal,reemplazar sello warman bomba,  Oil and gas industry  Power plant  Metallurgy  Circulating pump  Slurry pump  Desulphurization pump  Warman  Hebei Shibeng Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:700 r/min
Shaft via:220 mm
Technical data
