23-M45K1-350 cierres mecanicos agitadores

Product Description:Oversized shaft diameter reactor big size cartridge mechanical seal. July 2010 the company's first large diameter reactor mechanical seal installation is completed factory in Busan, South Korea SK, passed acquirer acceptance!
Product No.:23-M45K1-350
PID No.:141104
Product Series:Cartridge Mechanical seals
Application Industry:Chemical fiber
Pump Type:MixerReactor stirrer
Product Description





Sdms Seal Co., Ltd. is a mixer  seals supplier of design,engineering and repair of  industrial mixing and blending.We produce large size mixer and agitator seal, single mixer and agitator seal, cartridge double mixer and agitator seal, double mixer and agitator seal, external mixer and agitator seal, short canister mixer and agitator seal,dual pusher mixer and agitator seal for single rotor mixers,double rotor mixers,food grade mixers,cement mixers,fertilizer mixers. Our products can replacement of John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler and customized OEM mixer and agitator seals etc. We also do repair of mixer and agitator seal of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 23-M45K1-350  Style: mechanical cartridge mixer seals


Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features

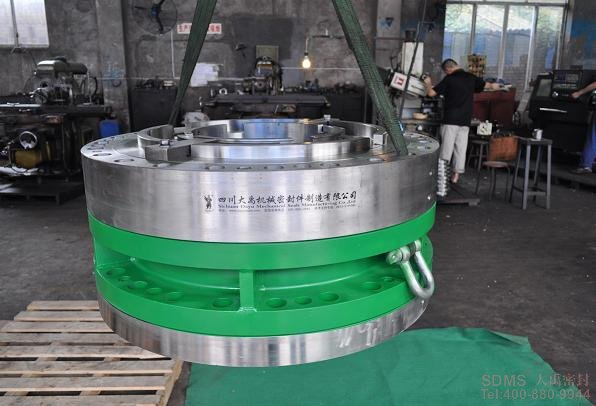

Oversized shaft diameter reactor big size cartridge mechanical seal. July 2010 the company's first large diameter reactor mechanical seal installation is completed factory in Busan, South Korea SK, passed acquirer acceptance! The mechanical seal reactor shaft diameter 350mm, the design pressure 0.6MPa, design temperature 325 ℃; sealing machine adopts double end cartridge and circulating cooling jacket cooling, mechanical seal ensures long-term use in harsh temperature conditions.

Recommended Applications Pumps and Rotating Equipment
Busan South Korea SK mixer and agitator seal

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor y fabricante completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos cierres mecanicos para agitadores
cierres mecanicos para mezcladores, cierres mecanicos para reactores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:523    lable:fabricantes cierres agitadores,reactor seal,mixer seal, agitator seal,big seal, mixer seals supplier,cierres agitadores, cierres mezcladores,cierres reactores,proveedores cierres mezcladores,proveedores cierres agitadores,  Chemical fiber  Mixer  Reactor stirrer  Busan South Korea SK
Application
Design features
Double cartridge seals
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±5
Parameters
Temperature:180 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:200 r/min
Shaft via:350 mm
